20kV Cold Shrink Cable Joints , Cold Shrink Cable Accessories NLS WLS JLS
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Silicon Rubber | Color: | Grey,red,yellow,green |
|---|---|---|---|
| Type: | Cold Shrinkable, Indoor Termination,Outdoor Termination,Straight Joint | Voltage: | 20kV |
| Product Name: | 20kV Cold Shrinkable Termination Kits | Sample: | Available |
| High Light: | cold shrink cable jointing kit,cold shrink cable accessories |
||

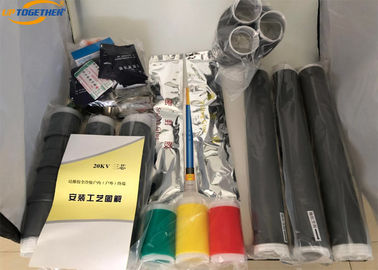

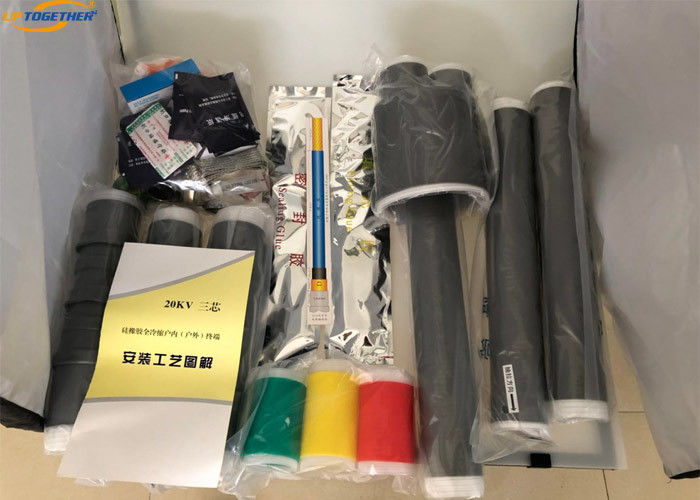

20kV Cold Shrinkable Termination Kits NLS WLS JLS , Silicon rubber
1. Product Introduction
20kV(12/20kV)cold shrink power cable terminations and joints are consist of cold shrink tube,cold shrink termination,cold shrink joint and cold shrink breakout,widely used in electricity supply systems under 24kv in oil refinery,metallurgy, railway, ports and other area.
2. Technical Parameter
| Property | Test Method | Result |
| 1min Power frequency test | 54kV 1min no flash over,no strick | no flash,no strick no flash over |
| Partial discharge test | The magnitude of discharge at 20kV shall not exceed 10pc | The magnitude of the discharge of the combination sample didn't exceed 4pc at 20kV |
| Cyclic load test |
5h heating,conduction temperature 95℃,3h colling |
Subjected to 3 time Cyclic load test |
| Impulse voltage withstand test | Neither breakdown nor flashover shall occur at 10 positive and negative impulses of 125kV | No breakdown nor flashover occurred on the combination sample at 10 positive and 10 negative impulses of 125kV |
| DC negative polarity voltage withstand for 15min | Neither breakdown nor flashover shall occur at 52kV for 15 min | No breakdown nor flashover occurred on the combination samples at 52kV for 15 min |
| 4h Power frequency test | 35kV 4h no flash over,no strick | no strick,no flash over |
3. Specification Packaging
| Size | Type | Cable Range |
| 20kV NLY -3/1 |
INDOOR TERMINATION FOR 20kV 3 CORES CABLE |
35-50mm2 |
| 20kV NLY -3/2 | 70-120mm2 | |
| 20kV NLY -3/3 | 150-240mm2 | |
| 20kV NLY -3/4 | 300-400mm2 | |
| 20kV WLY -3/1 |
OUTDOOR TERMINATION FOR 20kV 3 CORES CABLE
|
35-50mm2 |
| 20kV WLY -3/2 | 70-120mm2 | |
| 20kV WLY -3/3 | 150-240mm2 | |
| 20kV WLY -3/4 | 300-400mm2 | |
| 20kV JLY -3/1 |
STRAIGHT THROUGH JOINT |
35-50mm2 |
| 20kV JLY -3/2 | 70-120mm2 | |
| 20kV JLY -1/3 | 150-240mm2 | |
| 20kV JLY -1/4 | 300-400mm2 | |
| 20kV NLY -1/1 |
INDOOR TERMINATION FOR 20kV SINGLE CORE CABLE |
35-50mm2 |
| 20kV NLY -1/2 | 70-120mm2 | |
| 20kV NLY -1/3 | 150-240mm2 | |
| 20kV NLY -1/4 | 300-400mm2 | |
| 20kV WLY -1/1 |
INDOOR TERMINATION FOR 20kV SINGLE CORE CABLE |
35-50mm2 |
| 20kV WLY -1/2 | 70-120mm2 | |
| 20kV WLY -1/3 | 150-240mm2 | |
| 20kV WLY -1/4 | 300-400mm2 | |
| 20kV JLY -1/1 | STRAIGHT THROUGH JOINT FOR20kV SINGLE CORE CABLE |
35-50mm2 |
| 20kV JLY -1/2 | 70-120mm2 | |
| 20kV JLY -1/3 | 150-240mm2 | |
| 20kV JLY -1/4 | 300-400mm2 |
4. Ordering Information

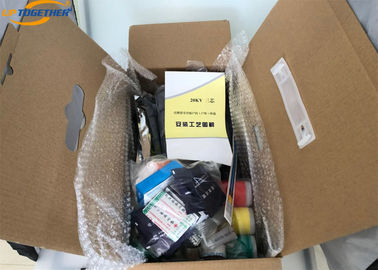

Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.
5. Application Case
