Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance

Large Image : Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance Get Best Price

Product Details:

Place of Origin:	China (Mainland)
Brand Name:	UPTOGETHER
Certification:	SGS
Model Number:	SR CST

Payment & Shipping Terms:

Minimum Order Quantity:	500 Piece/Pieces
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	3-15days
Payment Terms:	L/C, T/T
Supply Ability:	4000 Piece/Pieces per Day

Contact Now

Detailed Product Description

Material:	Silicon Rubber	Rated Voltage:	1kV
Type:	Insulation Sleeving	Application:	Low Voltage
Tensile Strength:	12MPa	Color:	Black,Grey
High Light:	silicone shrink tubing , epdm cold shrink tube

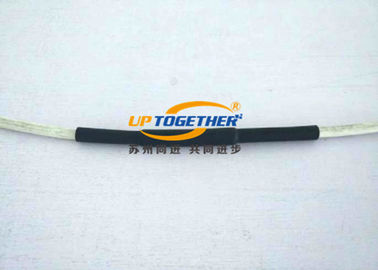

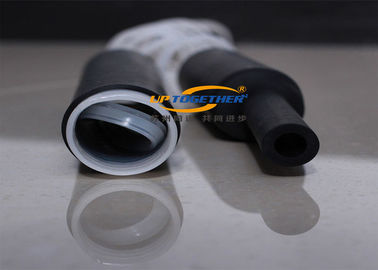

Silicon Rubber Cold Shrink Tube For Sealing Of Feeder Connections SR CST φ25-φ80mm

1. Product Introducton

SR CST series of silicon rubber cold shrink tube with high shrink ratio is made from silicon rubber material,suitable for sealing and protection of many kinds of cables.SR CST are widely used in mobile communication station and other field.It is very simple to install.The material with good weather resistance,bacteria resistance and so on. Also it is approval by Rohs.

Black / Grey Cold Shrink Tube Insulation Sleeving Type Bacteria Resistance 0

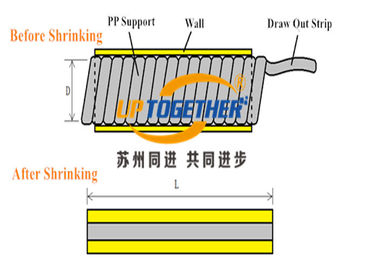

2. Technical Parameter

Size	Application Range (mm)	Length After Relaxed (mm)	Thickness After Relaxed (mm)	Color
Φ25	6.3～21	90～500	3.0	Black/Grey
Φ32	10～26	90～500	3.0	Black/Grey
Φ35	12～30	90～500	3.0	Black/Grey
Φ40	12.7～33	90～500	3.0	Black/Grey
Φ44	12.7～38	90～500	3.0	Black/Grey
Φ53	22～46	90～500	3.0	Black/Grey
Ф65	32～58	90～500	3.5	Black/Grey
Ф80	37～72	90～500	4.0	Black/Grey

The shrinkage ratio can be 5:1
Other sizes,length&color can be customized.

3. Specification Packaging

No.	Property	Result	Standard
1	Colour	Black,Grey
2	Dielectric Strength KV/mm	≧20	ASTM 412
3	Volume Resistivity Ω.cm	9×1014	ASTM 412
4	Support Bar Material	PP
5	RohS Testing	Pass	RohS
6	Hardness(Shore A)	44	ASTM D2240
7	Tensile Strength MPa	≧7	ASTM D2671
8	Elongation %	≧670	ASTM D2671
9	Tear Strength KN/m	≧34	ASTM 751
10	Max Operating Temperature	90℃
11	Min Operating Temperature	-50℃
12	Hydrophobic Rate	Excellent
13	Protection Grade	IP 68	IEC 60529
14	Fire Resistance	V-1	UL94
15	UV Resistance	Grey Scale Rating 3-4	ASTM G154
16	Ozone Resistance	No crack	GB/T 7762
17	Anti-fungal Effect	Level 0	GB/T 2423.16
18	Density g/cm3	1.13	ASTM D 792
19	Storage time	2 Year
20	Service life	30 Years

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

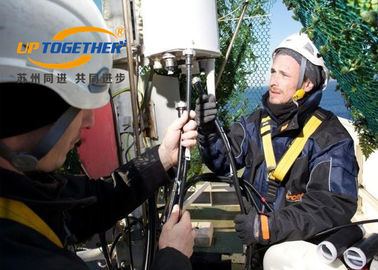

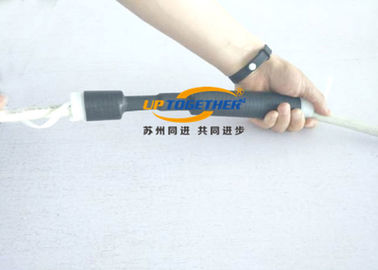

5. Application Case
