φ30 - 350MM Smooth Heavy Wall Heat Shrink Tubing Mechanical / EVA Glue
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Marterial: | PE | Color: | Black |
|---|---|---|---|
| Voltage: | 1-36kV | ID: | 30-350mm |
| Glue: | Mechanical, EVA | Adhesive: | EVA |
| Shrink Ratio: | 3:1 | Length: | 0.1-1.22m |
| High Light: | heat shrinkable anti tracking tubing,single wall heat shrink tubing |
||

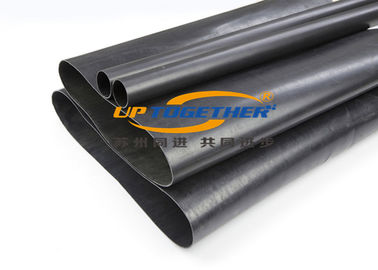

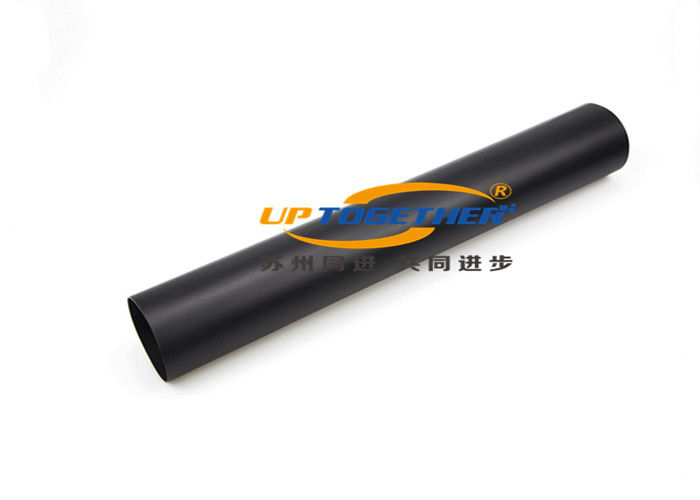

Heavy wall heat shrink tube with adhesive factory supplier HWPC HWP , φ30-φ350 , Black
1. Product Introduction
HWPC series of heat shrink medium wall tube are made from polyolefin material with with hot melting adhesive and medium wall thickness. They are suitable for sealing and protecting cable joint up to 35kV. They are also used to other situation for mechanical protection and seal. The flame resistance tube or other request can be custom made.
2. Technical Parameter
| Property | Test Method | Result |
| Tensile strength | ASTM D638 | ≥14N/mm2 |
| Elongation | ASTM D638 | ≥450% |
| Dielectric strength | ASTM D149 | 25kv/mm |
| Volume resistivity | ASTM D257 | 1x1014Ω.cm |
| Eccentricity | ASTM D2671 | <30% |
| Water absorption | ASTM D570 | <0.5% |
| Peeling strength | DIN 30672 | ≥125N/25m |
3. Specification Packaging
| Size | Before Applied (mm) | After Applied (mm) | Packing (M/PC) | ||
Inner Diameter | Wall Thickness | Inner Diameter | Wall Thickness | ||
| Ø28/8 | ≥28 | 1.0+0.1 | 8.0 | 2.0±0.1 | 1～1.22 |
| Ø30/12 | ≥30 | 1.0+0.1 | 12.0 | 2.0±0.1 | 1～1.22 |
| Ø35/14 | ≥35 | 1.0+0.1 | 14.0 | 2.0±0.1 | 1～1.22 |
| Ø40/16 | ≥40 | 1.0+0.1 | 16.0 | 2.0±0.1 | 1～1.22 |
| Ø50/20 | ≥50 | 1.0+0.1 | 20.0 | 2.2±0.1 | 1～1.22 |
| Ø63/25 | ≥63 | 1.0+0.1 | 25.0 | 2.2±0.1 | 1～1.22 |
| Ø75/30 | ≥75 | 1.0+0.1 | 30.0 | 2.2±0.1 | 1～1.22 |
| Ø85/35 | ≥85 | 1.0+0.1 | 35.0 | 2.2±0.1 | 1～1.22 |
| Ø95/40 | ≥95 | 1.0+0.1 | 40.0 | 2.3±0.1 | 1～1.22 |
| Ø115/50 | ≥115 | 1.1+0.1 | 50.0 | 2.4±0.1 | 1～1.22 |
| Ø140/60 | ≥140 | 1.1+0.1 | 60.0 | 2.5±0.1 | 1～1.22 |
| Ø160/60 | ≥160 | 1.1+0.1 | 60.0 | 2.7±0.1 | 1～1.22 |
| Ø180/60 | ≥180 | 1.1+0.1 | 60.0 | 3.0±0.1 | 1～1.22 |
| Ø200/65 | ≥200 | 1.1+0.1 | 65.0 | 3.3±0.1 | 1～1.22 |
| Ø250/75 | ≥250 | 1.1+0.1 | 75.0 | 3.5±0.1 | 1～1.22 |
| Ø300/75 | ≥300 | 1.1+0.1 | 75.0 | 3.5±0.1 | 1～1.22 |
| Ø350/75 | ≥350 | 1.1+0.1 | 75.0 | 3.5±0.1 | 1～1.22 |
4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

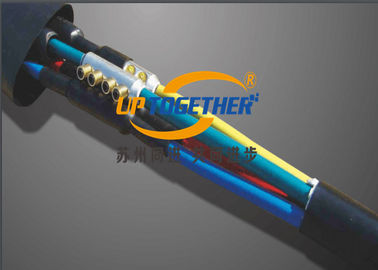

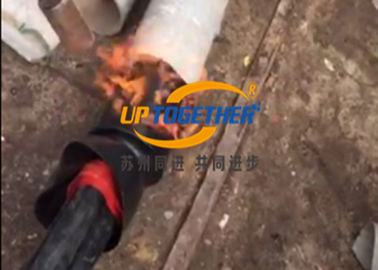

5. Application Case
