Adhesive Lined Heavy Wall Heat Shrink Tubing HWPC HWP φ8 - φ230MM

Adhesive Lined Heavy Wall Heat Shrink Tubing HWPC HWP  φ8 - φ230MM
Adhesive Lined Heavy Wall Heat Shrink Tubing HWPC HWP  φ8 - φ230MM

Large Image :  Adhesive Lined Heavy Wall Heat Shrink Tubing HWPC HWP φ8 - φ230MM Get Best Price

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: UPTTOGETHER
Certification: SGS
Model Number: HWPC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Meter/Meters
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1-15days
Payment Terms: L/C, T/T
Supply Ability: 1000 Meter/Meters per Day
Detailed Product Description
Material: PE Color: Black
Voltage: 1-36kV Shrink Ratio: 3:1
Tensile Strength: 10.4Mpa Application: Low Voltage
High Light:

single wall heat shrink tubing

,

heat shrinkable stress control tubing

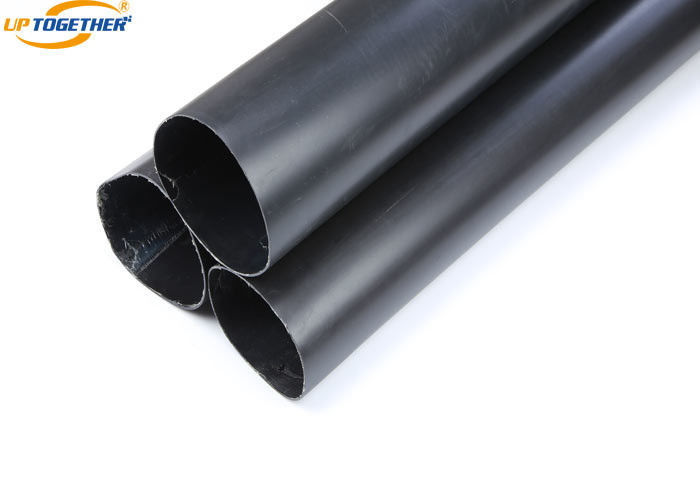

Adhesive Lined Semi Rigid Heavy Wall Heat Shrink Tube HWPC HWP , φ8-φ230mm , Black , PE


1. Product Introduction
Semi rigid heavy wall adhesive lined heat shrink tubing is made of polyolefin materials extruded with a layer of hot melt adhesive inside. This product carries excellent insulation and sealing, corrosion resistance performance, with which it was found in wide applications like insulations and protections for high voltage cable middle connections and terminations, busbars, as well as different kinds of pipelines because of its excellent corrosion resistance, moisture-proof, and abrasion resistance performances.Adhesive Lined Heavy Wall Heat Shrink Tubing HWPC HWP  φ8 - φ230MM 0

2. Technical Parameter

Property Test Method Result
Tensile strength ASTM D638 ≥14N/mm2
Elongation ASTM D638 ≥450%
Dielectric strength ASTM D149 25kv/mm
Volume resistivity ASTM D257 1x1014Ω.cm
Eccentricity ASTM D2671 <30%
Water absorption ASTM D570 <0.5%
Peeling strength DIN 30672 ≥125N/25m


3. Specification Packaging

Size Before Applied (mm) After Applied (mm)

Packing

(M/PC)



Inner

Diameter

Wall

Thickness

Inner

Diameter

Wall

Thickness


Ø8.0/2.0 ≥8.0 1.0+0.1 2.0 2.0±0.1 1~1.22
Ø10.2/3.0 ≥10.2 1.0+0.1 3.0 2.0±0.1 1~1.22
Ø12.0/3.0 ≥12.0 1.0+0.1 3.0 2.0±0.1 1~1.22
Ø16.0/5.0 ≥16.0 1.0+0.1 5.0 2.0±0.1 1~1.22
Ø19.1/5.6 ≥19.1 1.0+0.1 5.6 2.0±0.1 1~1.22
Ø22.0/6.0 ≥22.0 1.0+0.1 6.0 2.0±0.1 1~1.22
Ø25.0/8.0 ≥25.0 1.0+0.1 6.0 2.0±0.1 1~1.22
Ø28/6.0 ≥28 1.0+0.1 6.0 2.0±0.1 1~1.22
Ø33.0/8.0 ≥33.0 1.0+0.1 8.0 2.0±0.1 1~1.22
Ø38.1/12.0 ≥38.1 1.0+0.1 12.0 2.0±0.1 1~1.22
Ø43.2/12.7 ≥43.2 1.0+0.1 12.7 2.0±0.1 1~1.22
Ø52.1/16.0 ≥52.1 1.0+0.1 16.0 2.0±0.1 1~1.22
Ø65.0/19.0 ≥65.0 1.0+0.1 19.0 2.0±0.1 1~1.22
Ø75.0/22.0 ≥75.0 1.0+0.1 22.0 2.0±0.1 1~1.22
Ø85.0/25.0 ≥85.0 1.0+0.1 25.0 2.0±0.1 1~1.22
Ø95.0/30.0 ≥95.0 1.0+0.1 30.0 2.0±0.1 1~1.22
Ø115/34.0 ≥115 1.0+0.1 34.0 2.0±0.1 1~1.22
Ø140/42.0 ≥140 1.0+0.1 42.0 2.0±0.1 1~1.22
Ø160/50.0 ≥160 1.0+0.1 50.0 2.0±0.1 1~1.22
Ø180/65.0 ≥180 1.0+0.1 65.0 2.0±0.1 1~1.22
Ø200/69.0 ≥200 1.0+0.1 69.0 2.0±0.1 1~1.22
Ø230/78.0 ≥230 1.0+0.1 78.0 2.0±0.1 1~1.22



4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.


5. Application Case
Adhesive Lined Heavy Wall Heat Shrink Tubing HWPC HWP  φ8 - φ230MM 1
