Anti Tracking Heavy Wall Heat Shrink Tubing 10 - 1220MM Length 450% Elongation

I'm Online Chat Now
Certification
China Suzhou Tongjin Polymer Material Co.,Ltd certification
China Suzhou Tongjin Polymer Material Co.,Ltd certification
No matter what material based products you are looking for in the industry PE, Teflon, silicone rubber, PVC, EPDM, we with our brilliant knowledge and experience in our field, can pledge you the most cost-performance products and solutions. We also provided customization according to the requirement of client

—— Tina

Anti Tracking Heavy Wall Heat Shrink Tubing 10 - 1220MM Length 450% Elongation

Anti Tracking Heavy Wall Heat Shrink Tubing 10 - 1220MM Length 450% Elongation
Anti Tracking Heavy Wall Heat Shrink Tubing 10 - 1220MM Length 450% Elongation Anti Tracking Heavy Wall Heat Shrink Tubing 10 - 1220MM Length 450% Elongation Anti Tracking Heavy Wall Heat Shrink Tubing 10 - 1220MM Length 450% Elongation Anti Tracking Heavy Wall Heat Shrink Tubing 10 - 1220MM Length 450% Elongation Anti Tracking Heavy Wall Heat Shrink Tubing 10 - 1220MM Length 450% Elongation Anti Tracking Heavy Wall Heat Shrink Tubing 10 - 1220MM Length 450% Elongation

Large Image :  Anti Tracking Heavy Wall Heat Shrink Tubing 10 - 1220MM Length 450% Elongation Get Best Price

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: UPTOGETHER
Model Number: ATT

Payment & Shipping Terms:

Minimum Order Quantity: 100 Meter/Meters
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1-15 Days
Payment Terms: L/C, T/T
Supply Ability: 1000 Meter/Meters per Day
Detailed Product Description
Jacket: PE Color: Black
Length: 10-1220mm Voltage: 10kV,36kV
Application: 25-630mm2 Shrink Ratio: 2:1-3:1
Glue: Two Ends, All Length,Positon ID: 30-100
High Light:

single wall heat shrink tubing

,

heat shrinkable stress control tubing

Heat shrink anti-tracking tube ATT , φ30-φ100mm , Red , Jacket PE



1. Product Introduction

10kV 36kV ATT series of heat shrink anti-tracking tube are made from polyolefin material with adhesive at both ends. They are suitable for power cable joint up to 36kv for protecting against accidental flashover.

Anti Tracking Heavy Wall Heat Shrink Tubing 10 - 1220MM Length 450% Elongation 0



2. Technical Parameter

Property Test Method Result
Tensile strength ASTM D638 11 N/mm2
Elongation ASTM D638 450%
Heat shock@250℃/30’ ASTM D2671 No Cracking .No Flow
Cold blend@-30℃ ASTM D2671 No Cracking
Dielectric strength ASTM D149 25kv/mm
Volume resistivity ASTM D257 1x1014Ω.cm
Tracking resistance ASTM D2303 Pass
Water absorption ASTM D570 <0.5%



3. Specification Packaging

Size Before Applied (mm) After Applied (mm)

Packing

(mm)



Inner

Diameter

Inner

Diameter

Inner Wall

Thickness


Ø30/12 ≥30 12 2.2 100~1220
Ø35/14 ≥35 14 2.3 100~1220
Ø40/17 ≥40 17 2.3 100~1220
Ø50/22 ≥50 22 2.4 100~1220
Ø35/13 ≥35 13 3.0 100~1220
Ø40/15 ≥40 15 3.0 100~1220
Ø50/19 ≥50 19 3.0 100~1220
Ø55/24 ≥55 24 3.2 100~1220
Ø60/26 ≥60 26 3.2 100~1220
Ø70/29 ≥70 29 3.2 100~1220
Ø75/35 ≥75 35 3.2 100~1220
Ø80/36 ≥80 36 3.2 100~1220
Ø90/41 ≥90 41 3.5 100~1220
Ø100/45 ≥100 45 3.5 100~1220



4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

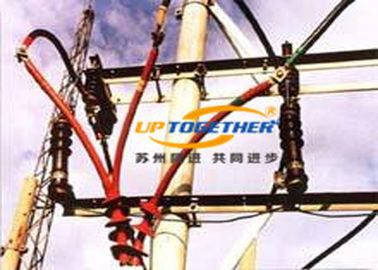

5. Application Case
Anti Tracking Heavy Wall Heat Shrink Tubing 10 - 1220MM Length 450% Elongation 1
