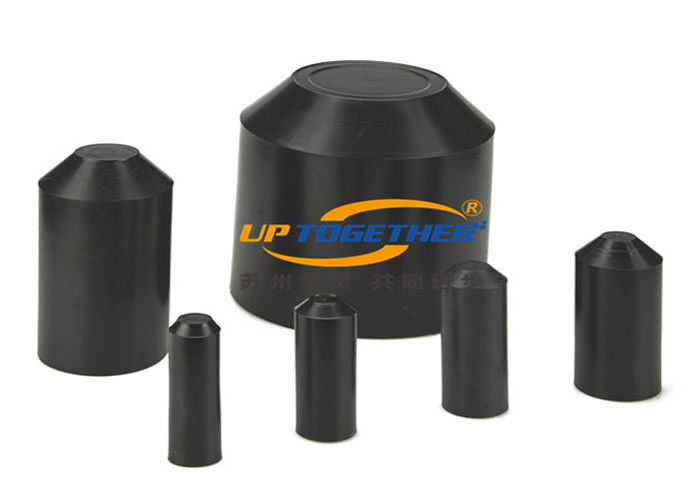

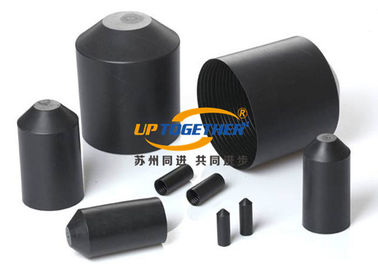

DEC Black Heat Shrink Cable End Caps , PE Jacket Electrical Cable End Caps
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | PE | Number Of Conductors: | 1-5cores |
|---|---|---|---|
| Color: | Black | Valve: | With,Without |
| Jacket: | PE | Application: | 10-630mm2 |
| ID: | 12-250mm | ||
| High Light: | heat shrink cable end caps,heat shrink breakout boots |
||
Heat Shrink Cable End Cap DEC , φ12-φ250 , colour black , Material PE
1. Product Parameter
DEC series cable end caps are used to seal cable ends during installation or storage, protecting cable ends against oxidation,ozone,UV,etc coated and with hot-melt adhesive to ensure reliable seal of cable ends.
2. Technical Parameter
| Property | Test Method | Result |
| Tensile strength | ASTM D638 | ≥12MPa |
| Elongation | ASTM D638 | ≥300% |
| Dielectric strength | IEC 60243 | ≥20kv/mm |
| Stress cracking resistance | ASTMD1693 | No cracking |
| Volume resistivity | ASTM D257 | ≥1×1014Ω·cm |
| Fungs and decay resistance | ISO 846 | Pass |
| Longitudinal shrinkage | ASTM D2671 | ≤10% |
| Eccentricity | ASTM D2671 | ≤30% |
| Water absorption | ASTM D570 | ≤0.5% |

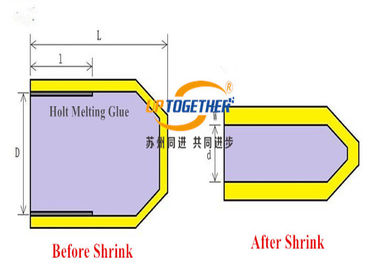

3. Specification Packaging
| Size | Before Applied (mm) | After Applied (mm) | Length | |
| Internal Diameter | Internal Diameter | Wall Thickness | mm | |
| Ø11/5.5 | 11+1 | ≤5.5 | 1.9±0.1 | 30±3 |
| Ø16/8 | 16+1 | ≤8 | 2.5±0.1 | 70±7 |
| Ø20/8 | 20+1 | ≤8 | 2.5±0.1 | 70±7 |
| Ø25/11 | 25+1 | ≤11 | 2.5±0.1 | 80±8 |
| Ø30/17 | 30+1 | ≤17 | 2.5±0.1 | 80±8 |
| Ø35/17 | 35+1 | ≤17 | 2.5±0.1 | 90±9 |
| Ø40/17 | 40+1.5 | ≤17 | 2.5±0.1 | 90±9 |
| Ø55/26 | 55+1.5 | ≤26 | 2.5±0.1 | 125±12 |
| Ø75/30 | 75+1.5 | ≤26 | 3.2±0.1 | 140±14 |
| Ø100/40 | 100+2 | ≤40 | 4.0±0.1 | 140±14 |
| Ø120/57 | 120+2 | ≤57 | 4.0±0.1 | 150±15 |
| Ø140/63 | 140+3 | ≤63 | 4.0±0.1 | 180±18 |
| Ø200/95 | 200+4 | ≤95 | 4.0±0.1 | 270±27 |
| Ø250/100 | 250+5 | ≤100 | 4.0±0.1 | 270±27 |
4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

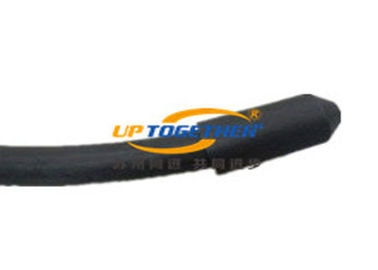

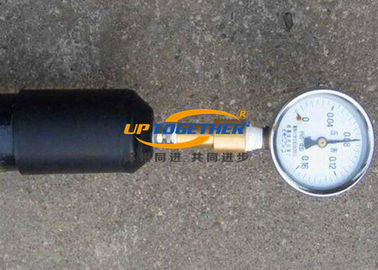

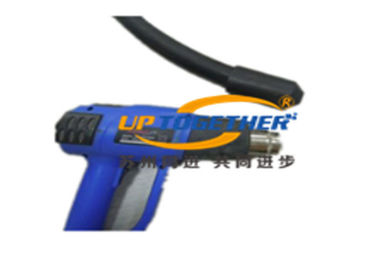

5. Application Case
