Durable Heavy Wall Tubing , Heat Shrinkable Stress Control Tubing ID 30 - 85MM

Large Image : Durable Heavy Wall Tubing , Heat Shrinkable Stress Control Tubing ID 30 - 85MM Get Best Price

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	UPTOGETHER
Model Number:	SCT

Payment & Shipping Terms:

Minimum Order Quantity:	100 Meter/Meters
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	1-15 Days
Payment Terms:	L/C, T/T
Supply Ability:	1000 Meter/Meters per Day

Contact Now

Detailed Product Description

Material:	PE	Rated Volhttp://mao.ecer.com/index.php?r=product/listtage:	10kV,24kV,36kV
Product Name:	Stress Control Heat Shrink Tube	ID:	30-85mm
Tensile Strength:	10.4Mpa	Lenth:	100-1200mm
High Light:	heat shrinkable anti tracking tubing , single wall heat shrink tubing

10-36kV Heat Shrink Stress Control Tube For Cable Termination And Straight Joint SCT , φ30-φ85mm

1. Product Introduction

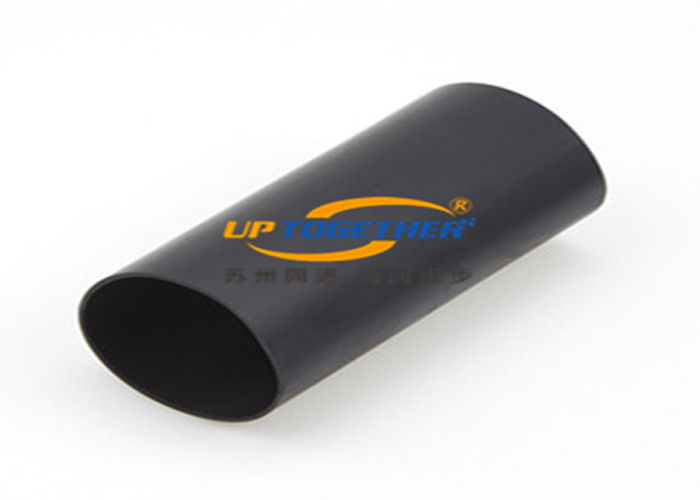

SCT series of heat shrink stress control tube are made from polyolefin material and suitable for power cable termination and joint up to 36kv for providing effective stress control.

Durable Heavy Wall Tubing , Heat Shrinkable Stress Control Tubing ID 30 - 85MM 0

2. Technical Parameter

Property	Test Method	Result
Tensile strength	ASTM D638	12 N/mm²
Elongation	ASTM D638	400%
Dielectric strength	ASTM D149	20kv/mm
Volume resistivity	ASTM D257	1x10^8-10Ω.cm
Longitudinal Change	ASTM D2671	Inside +/- 10%
Eccentricity	ASTM D2671	<30%
Water absorption	ASTM D570	<0.5%

3. Specification Packaging

Size	Before Applied (mm)	After Applied (mm)		Packing (M/Spool)
	Inner Diameter	Inner Diameter	Inner Wall Thickness
Ø30/11	≥30	11	2.1	100～1.22M)
Ø35/14	≥35	14	2.1	100～1.22M
Ø40/17	≥40	17	2.1	100～1.22M
Ø45/20	≥45	20	2.1	100～1.22M
Ø55/25	≥55	25	2.4	100～1.22M
Ø70/29	≥70	29	3.2	100～1.22M
Ø85/40	≥85	40	3.6	100～1.22M

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.
