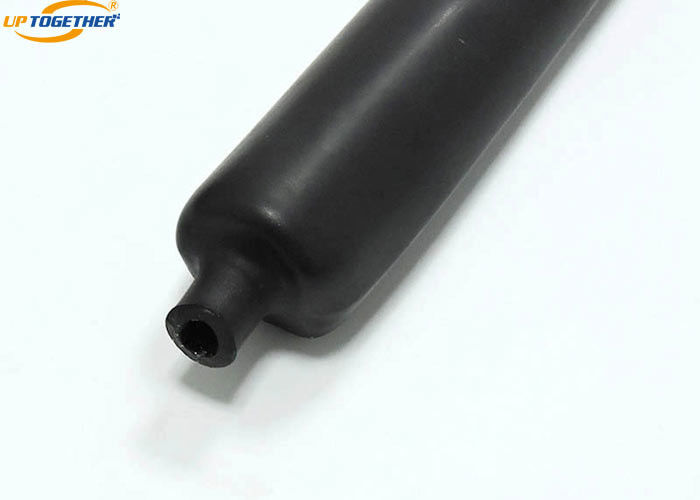

EVA Adhesive Heat Shrink Tube , Flexible Heat Shrink Tubing High Shrink Ratio
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | PE | Color: | Black |
|---|---|---|---|
| Voltage: | 1-36kV | Glue: | Mechanical, EVA |
| Adhesive: | EVA | Shrink Ratio: | 3:1 |
| High Light: | heat shrinkable anti tracking tubing,heat shrinkable stress control tubing |
||
Flame Retardant Heavy Wall adhesive-lined insulating Heat Shrink sleeves HWPC HWP, φ10.2-230mm
1. Product Introduction
Flame retardant adhesive-lined heat shrink tubing, with a hot melt adhesive layer extruded inside, is made of polyolefin materials whose properties are modified through ionizing radiation technology. The polyolefin outside, combined with inner layer of adhesive, produces excellent insulation, sealing capability against water and moisture, mechanical abrasion resistance, impact resistance. This product is specially designed to provide insulation protection for medium and low voltage cable middle connection, terminations and various busbars and for other corrosion resistant, moisture-proof and sealing purposes.
2. Technical Parameter
| Property | Test Method | Result |
| Tensile strength | ASTM D638 | ≥14N/mm2 |
| Elongation | ASTM D638 | ≥400% |
| Dielectric strength | ASTM D149 | 18kv/mm |
| Volume resistivity | ASTM D257 | 1x1014Ω.cm |
| Eccentricity | ASTM D2671 | <30% |
| Water absorption | ASTM D570 | <0.5% |
| Peeling strength | DIN 30672 | ≥125N/25m |
3. Specification Packaging
| Size | Before Applied (mm) | After Applied (mm) |
Packing (M/PC) |
||
|
Inner Diameter |
Wall Thickness |
Inner Diameter |
Wall Thickness |
||
| Ø10.2/3.0 | ≥10.2 | 1.0+0.1 | 3.0 | 1.75±0.30 | 1～1.22 |
| Ø16.0/5.0 | ≥16.0 | 1.0+0.1 | 5.0 | 1.90±0.30 | 1～1.22 |
| Ø19.1/5.6 | ≥19.1 | 1.0+0.1 | 5.6 | 2.45±0.30 | 1～1.22 |
| Ø25/8 | ≥25.0 | 1.0+0.1 | 8.0 | 2.45±0.30 | 1～1.22 |
| Ø28/9 | ≥28.0 | 1.0+0.1 | 9.0 | 2.60±0.30 | 1～1.22 |
| Ø35/10.2 | ≥35.0 | 1.0+0.1 | 10.2 | 2.70±0.45 | 1～1.22 |
| Ø38.1/12 | ≥38.1 | 1.0+0.1 | 12.0 | 2.70±0.45 | 1～1.22 |
| Ø43.2/12.7 | ≥43.2 | 1.0+0.1 | 12.7 | 2.70±0.45 | 1～1.22 |
| Ø52.1/16 | ≥52.1 | 1.1+0.1 | 16.0 | 2.80±0.45 | 1～1.22 |
| Ø63/19 | ≥63 | 1.1+0.1 | 19.0 | 2.80±0.45 | 1～1.22 |
| Ø75/22 | ≥75 | 1.1+0.1 | 22.0 | 3.00±0.45 | 1～1.22 |
| Ø85/25 | ≥85.0 | 1.1+0.1 | 25.0 | 3.00±0.45 | 1～1.22 |
| Ø95/29 | ≥95.0 | 1.1+0.1 | 29.0 | 3.30±0.50 | 1～1.22 |
| Ø115/34 | ≥115 | 1.1+0.1 | 34.0 | 3.70±0.50 | 1～1.22 |
| Ø125/36 | ≥125 | 1.1+0.1 | 36.0 | 3.70±0.50 | 1～1.22 |
| Ø130/36 | ≥130 | 1.1+0.1 | 36.0 | 3.70±0.50 | 1～1.22 |
| Ø140/42 | ≥140 | 1.1+0.1 | 42.0 | 3.70±0.50 | 1～1.22 |
| Ø160/48 | ≥160 | 1.1+0.1 | 48.0 | 3.70±0.50 | 1～1.22 |
| Ø180/58 | ≥180 | 1.1+0.1 | 58.0 | 3.70±0.50 | 1～1.22 |
| Ø200/60 | ≥200 | 1.1+0.1 | 60.0 | 3.70±0.50 | 1～1.22 |
| Ø230/69 | ≥230 | 1.1+0.1 | 69.0 | 3.70±0.50 | 1～1.22 |
4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.
5. Application Case
