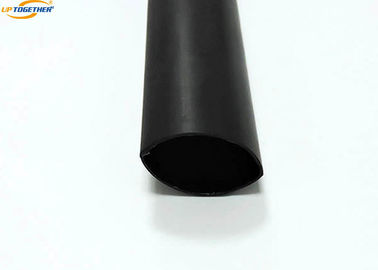

Low Voltage Black Single Wall Heat Shrink Tubing Abrasion Resistance

Large Image : Low Voltage Black Single Wall Heat Shrink Tubing Abrasion Resistance Get Best Price

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	UPTTOGETHER
Certification:	SGS
Model Number:	HWPC

Payment & Shipping Terms:

Minimum Order Quantity:	1 Meter/Meters
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	1-15days
Payment Terms:	L/C, T/T
Supply Ability:	1000 Meter/Meters per Day

Contact Now

Detailed Product Description

Material:	PE	Color:	Black
Voltage:	1-36kV	Shrink Ratio:	3:1
Tensile Strength:	10.4Mpa	Application:	Low Voltage
High Light:	single wall heat shrink tubing , heat shrinkable stress control tubing

Heavy Wall Heat Shrink Tube HWPC HWP , φ30-φ350mm , Color Black

1. Product Introduction
Heavy wall heat shrink tubing is made of polyolefin materials whose properties are modified through special ionizing radiation process with electronic accelerators. It is flame retardant and highly insulating with a relatively thicker wall than normal single wall tubing. This product is found in many applications esp. flame retardant requiring conditions like insulation and protection for high voltage cable middle connections, terminations and busbar as well as different kinds of pipelines for its excellent corrosion resistance, abrasion resistance.

2. Technical Parameter

Property	Test Method	Result
Tensile strength	ASTM D638	≥14N/mm²
Elongation	ASTM D638	≥450%
Dielectric strength	ASTM D149	25kv/mm
Volume resistivity	ASTM D257	1x10¹⁴Ω.cm
Eccentricity	ASTM D2671	<30%
Water absorption	ASTM D570	<0.5%
Peeling strength	DIN 30672	≥125N/25m

3. Specification Packaging

Size	Before Applied (mm)		After Applied (mm)		Packing (M/PC)
	Inner Diameter	Wall Thickness	Inner Diameter	Wall Thickness
Ø28/8	≥28	1.0+0.1	8.0	2.0±0.1	1～1.22
Ø30/12	≥30	1.0+0.1	12.0	2.0±0.1	1～1.22
Ø35/14	≥35	1.0+0.1	14.0	2.0±0.1	1～1.22
Ø40/16	≥40	1.0+0.1	16.0	2.0±0.1	1～1.22
Ø50/20	≥50	1.0+0.1	20.0	2.2±0.1	1～1.22
Ø63/25	≥63	1.0+0.1	25.0	2.2±0.1	1～1.22
Ø75/30	≥75	1.0+0.1	30.0	2.2±0.1	1～1.22
Ø85/35	≥85	1.0+0.1	35.0	2.2±0.1	1～1.22
Ø95/40	≥95	1.0+0.1	40.0	2.3±0.1	1～1.22
Ø115/50	≥115	1.1+0.1	50.0	2.4±0.1	1～1.22
Ø140/60	≥140	1.1+0.1	60.0	2.5±0.1	1～1.22
Ø160/60	≥160	1.1+0.1	60.0	2.7±0.1	1～1.22
Ø180/60	≥180	1.1+0.1	60.0	3.0±0.1	1～1.22
Ø200/65	≥200	1.1+0.1	65.0	3.3±0.1	1～1.22
Ø250/75	≥250	1.1+0.1	75.0	3.5±0.1	1～1.22
Ø300/75	≥300	1.1+0.1	75.0	3.5±0.1	1～1.22
Ø350/75	≥350	1.1+0.1	75.0	3.5±0.1	1～1.22

4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

5. Application Case
