PE Heat Shrinkable Cable Connection Units Anti Tracking Rain Shield RS
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | PE | Color: | Red |
|---|---|---|---|
| Glue: | Manual | Jacket: | PE |
| Application: | 25-400mm2 | Voltage: | 10kV,36kV |
| High Light: | heat shrink cable end caps,heat shrink boot connector |
||

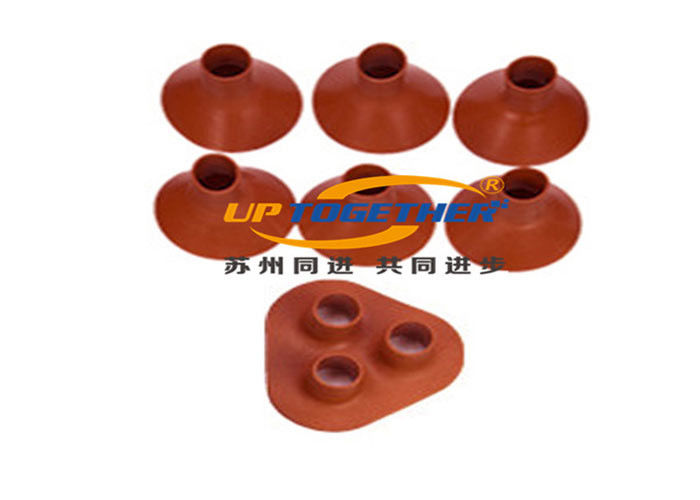

Heat Shrink Anti-Tracking Rain Shield RS , SRS1#-TRS4# , Red , Material PE
1. Product Introduction
SRS&TRS series of heat shrink rain shield are made of polyolefin material and coated on the inside with a hot melt adhesive in the end,suitable for heat shrink cable termination kits rated for 6-36kV.
2. Technical Parameter
| Property | Test Method | Result |
| Tensile strength | ASTM D638 | ≥12MPa |
| Elongation | ASTM D638 | ≥400% |
| Dielectric strength | ASTM D257 | ≥15kv/mm |
| Tcracking resistance | ASTMD2303 | Pass |
| Volume resistivity | ASTM D149 | ≥1×1014Ω·cm |
3. Specification Packaging
| Size | Before Applied (mm) | After Applied (mm) | ||||
| (mm) | Base Internal Diameter |
Shield Wall Thickness |
Shield Internal Diameter | Base Internal Diameter |
Shield Wall Thickness |
Shield Internal Diameter |
| SRS1# | 34±1 | 2.00±0.20 | 110±1 | 13±0.5 | 3.50±0.20 | 110±1 |
| SRS2# | 34±1 | 2.00±0.20 | 110±1 | 13±0.5 | 3.50±0.20 | 110±1 |
| SRS3# | 40±1 | 2.00±0.20 | 120±1 | 21±0.5 | 3.50±0.20 | 120±1 |
| SRS4# | 49±1 | 2.00±0.20 | 120±1 | 26±0.5 | 3.50±0.20 | 120±1 |
| TRS1# | 32±1 | 2.00±0.20 | 170±1 | 13±0.5 | 3.50±0.20 | 170±1 |
| TRS2# | 32±1 | 2.00±0.20 | 170±1 | 13±0.5 | 3.50±0.20 | 170±1 |
| TRS3# | 42±1 | 2.00±0.20 | 170±1 | 21±0.5 | 3.50±0.20 | 170±1 |
| TRS4# | 49±1 | 2.00±0.20 | 170±1 | 26±0.5 | 3.50±0.20 | 170±1 |
SRS series rain shield:
The base thickness is always 1.6±0.2mm.The shield angle is 80±3°
TRS series rain shield:
The base thickness is always 4.5±0.3mm.
4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

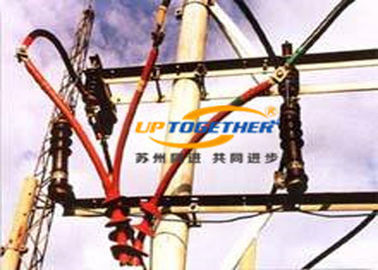

5. Application Case
