SR CST M Adhesive Lined Shrink Tubing φ28 - 44MM For Sealing Feeder Connections
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Silicon Rubber | Rated Voltage: | 1kV |
|---|---|---|---|
| Color: | Black,Grey | ID: | 20-150mm |
| Temperature: | -60℃-90℃ | Application: | Low Voltage |
| Tensile Strength: | 7Mpa | Shrink Ratio: | 2:1-5:1 |
| Length: | 100-500mm | ||
| Highlight: | silicone shrink tubing,epdm cold shrink tube |
||

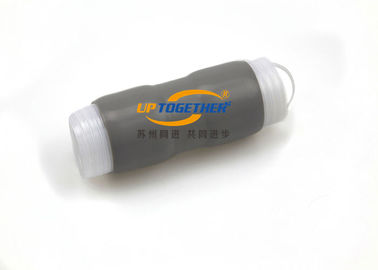

Silicon rubber cold shrink tube with mastic for Sealing Of Feeder Connections SR CST M , Φ28-φ44mm
1. Product Introduction

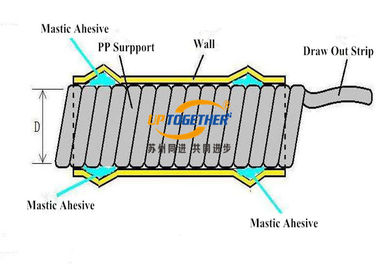

SR CST(M) series of silicon rubber cold shrink tube is made from silicon rubber material with mastic on the two ends,suitable for the sealing and protection to communication cable in mobile station.It is very simple to install.The material with good weather resistance,bacteria resistance and so on. Also it is approval by Rohs.
2. Technical Parameter
| Property | Test Method | Result |
| Tensile strength | ASTM D412 | 7MPa |
| Elongation | ASTM D412 | 670% |
| Tear strength | ASTMD751 | 34KN/m |
| Dielectric strength | ASTM D149 | 25kv/mm |
| Shore A | ASTM D2240 | 42 |
3. Specification Packaging
| Size | Application Range (mm) | Length after Relaxed (mm) |
| Φ28 | 11～23 | 110 |
| Φ40 | 12.7～35 | 140 |
4. Ordering Information
Packing
1By diffrent cartons and plastic pallents.
2.Anonymous packing is available.
3.OEM packing is available.
4.Do as customer's requirements.
Delivery
1.Our factory is nearby Shanghai.
2.Other seaport is acceptable.
3.Do as customer's requirements.

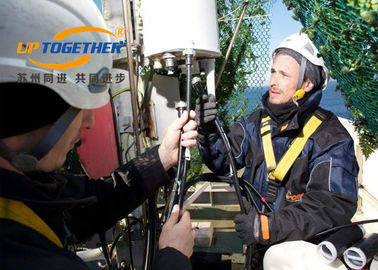

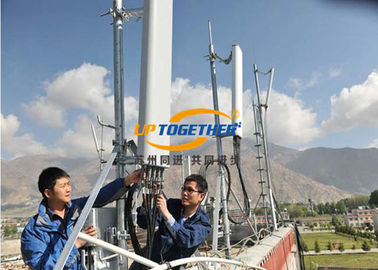

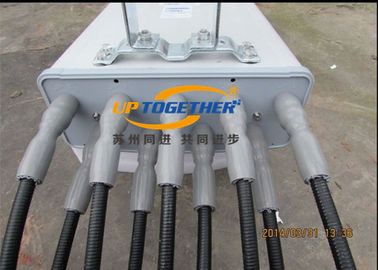

5. Application Case
