TRSY Heat Shrink Connector Kit , Heat Shrinkable Cable Jointing Kit
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | PE | Vlotage: | 1kV,0.6/1kV |
|---|---|---|---|
| Type: | Heat Shrinkable | Cable Cores: | Single,2,3,4 5 Cores |
| Product Name: | 1kV Heat Shrink Cable Termiantion | ||
| High Light: | heat shrinkable cable termination kit,heat shrink cable accessories |
||

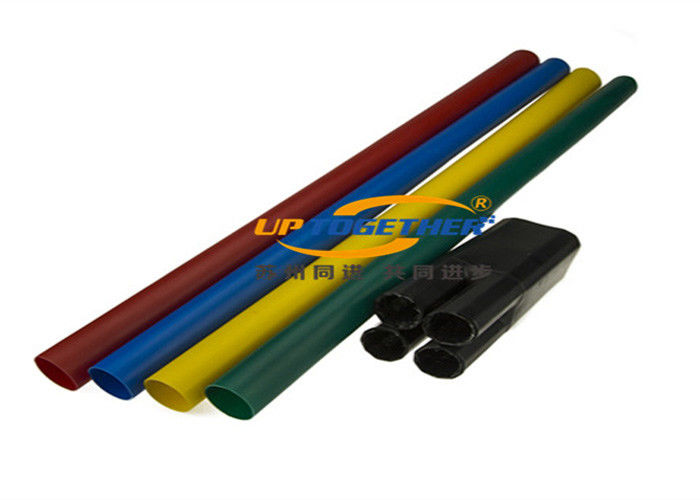

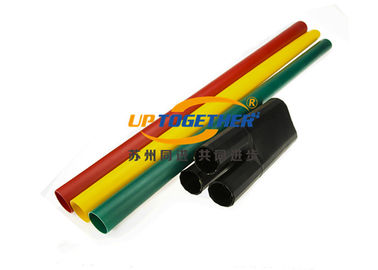

1kV heat shrink cable termination kits , heat shrink cable accessories , TRSY , 1kV TRSY -2/0
1. Product Introduction

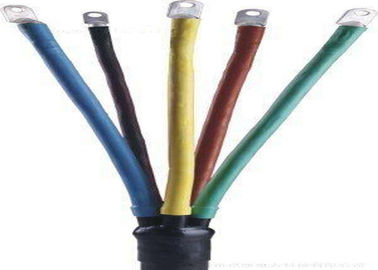

1kV heat shrink power cable terminations and joints are consist of anti-tracking tube,heat shrink protected tube and breakout ,widely used in electricity supply systems under 1kv in oil refinery,metallurgy, railway, ports and other area.
Terminal insulation splits phase directly with color red, yellow, green and blue.
Quick shrink, and no crack.
2. Technical Parameter
| Property | Test Method | Result |
| 1min Power frequency test | 4kV 1min no flash over,no strick | no flash,no strick no flash over |
| Cyclic load test | 5h heating,conduction temperature 95℃,3h colling | Subjected to 3 time Cyclic load test |
| 4h Power frequency test | 2.4KV 4h no flash over,no strick | no strick,no flash over |
3. Specification Packaging
| Size | Type | Cable Range |
| 1kv TRSY -2/0 |
TERMINATION FOR 1kv 2 CORES CABLE |
10-16mm2 |
| 1kv TRSY -2/1 | 25-50mm2 | |
| 1kv TRSY -2/2 | 70-120mm2 | |
| 1kv TRSY -2/3 | 150-240mm2 | |
| 1kv TRSY -2/4 | 300-400mm2 | |
| 1kv TRSY -3/0 |
TERMINATION FOR 1kv 3 CORES CABLE |
10-16mm2 |
| 1kv TRSY -3/1 | 25-50mm2 | |
| 1kv TRSY-3/2 | 70-120mm2 | |
| 1kv TRSY -3/3 | 150-240mm2 | |
| 1kv TRSY -3/4 | 300-400mm2 | |
| 1kv TRSY -4/0 |
TERMINATION FOR 1kv 4 CORES CABLE(3+1) |
10-16mm2 |
| 1kv TRSY -4/1 | 25-50mm2 | |
| 1kv TRSY -4/2 | 70-120mm2 | |
| 1kv TRSY -4/3 | 150-240mm2 | |
| 1kv TRSY -4/4 | 300-400mm2 | |
| 1kv TRSY -5/0 |
TERMINATION FOR 1kv 5 CORES CABLE(3+2,4+1) |
10-16mm2 |
| 1kv TRSY -5/1 | 25-50mm2 | |
| 1kv TRSY -5/2 | 70-120mm2 | |
| 1kv TRSY -5/3 | 150-240mm2 | |
| 1kv TRSY -5/4 | 300-400mm2 | |

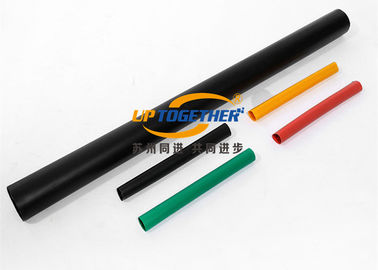

| 1kv JRSY -2/0 | STRAIGHT THROUGH JOINT FOR 1kv 2 CORES CABLE |
10-16mm2 |
| 1kv JRSY -2/1 | 25-50mm2 | |
| 1kV JRSY -2/2 | 70-120mm2 | |
| 1kv JRSY -2/3 | 150-240mm2 | |
| 1kv JRSY -2/4 | 300-400mm2 | |
| 1kv JRSY -3/0 | STRAIGHT THROUGH JOINT FOR 1kv 3 CORES CABLE |
10-16mm2 |
| 1kv JRSY -3/1 | 25-50mm2 | |
| 1kv JRSY -3/2 | 70-120mm2 | |
| 1kv JRSY -3/3 | 150-240mm2 | |
| 1kv JRSY -3/4 | 300-400mm2 | |
| 1kv JRSY -4/0 | STRAIGHT THROUGH JOINT FOR 1kv 4 CORES CABLE(3+1) |
10-16mm2 |
| 1kv JRSY -4/1 | 25-50mm2 | |
| 1kv JRSY -4/2 | 70-120mm2 | |
| 1v JRSY -4/3 | 150-240mm2 | |
| 1kv JRSY -4/4 | 300-400mm2 | |
| 1kv JRSY -5/0 |
STRAIGHT THROUGH JOINT (3+2,4+1) |
10-16mm2 |
| 1kv JRSY -5/1 | 25-50mm2 | |
| 1kv JRSY -5/2 | 70-120mm2 | |
| 1kv JRSY -5/3 | 150-240mm2 | |
| 1kv JRSY -5/4 | 300-400mm2 |
4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.
5. Application Case
