Colourful Cold Shrinkable Termination Kits TICW Certification Straight Shape

Colourful Cold Shrinkable Termination Kits TICW Certification Straight Shape
Colourful Cold Shrinkable Termination Kits TICW Certification Straight Shape Colourful Cold Shrinkable Termination Kits TICW Certification Straight Shape Colourful Cold Shrinkable Termination Kits TICW Certification Straight Shape Colourful Cold Shrinkable Termination Kits TICW Certification Straight Shape Colourful Cold Shrinkable Termination Kits TICW Certification Straight Shape

Large Image :  Colourful Cold Shrinkable Termination Kits TICW Certification Straight Shape Get Best Price

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: UPTOGETHER
Certification: TICW
Model Number: NLS WLS JLS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit/Units
Price: $5.00 - $300.00 / Units
Packaging Details: Carton
Delivery Time: 1-15 Days
Payment Terms: L/C, T/T
Supply Ability: 200 Unit/Units per Day
Detailed Product Description
Material: Silicon Rubber Color: Grey,red,yellow,green
Type: Cold Shrinkable, Indoor Termination,Outdoor Termination,Straight Joint Voltage: 10kV,8.7/15kV,3.6/6kV,6/6kV,6/10kV,8.7/10kV
Certification: TICW Product Name: 10kV Cold Shrink Termination Kits/Cold Shrinkable Straight Joints
High Light:

cold shrink termination kit

,

cold shrink cable jointing kit

10kV Cold Shrinkable Termination Kits NLS WLS JLS , Silicon rubber



1. Product Introduction

10kV NLS,WLS&JLS cold shrink power cable terminations and joints are consist of cold shrink tube,cold shrink termination,cold shrink joint and cold shrink breakout,widely used in electricity supply systems under 10kV in oil refinery,metallurgy, railway, ports and other area.

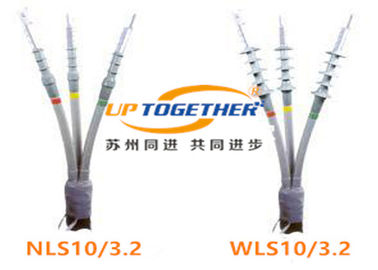

Colourful Cold Shrinkable Termination Kits TICW Certification Straight Shape 0



2. Technical Parameter

Property Test Method Result
1min Power frequency test 45kV 1min no flash over,no strick no flash,no strick no flash over
Partial discharge test The magnitude of discharge at 13kV shall not exceed 20pc The magnitude of the discharge of the combination sample didn't exceed 2pc at 13kV
Cyclic load test

5h heating,conduction

temperature 95℃,3h colling

Subjected to 3 time

Cyclic load test

Impulse voltage withstand test Neither breakdown nor flashover shall occur at 10 positive and negative impulses of 105kV No breakdown nor flashover occurred on the combination sample at 10 positive and 10 negative impulses of 105kV
DC negative polarity voltage withstand for 15min Neither breakdown nor flashover shall occur at 52kV for 15 min No breakdown nor flashover xQoccurred on the combination samples at 52kV for 15 min
4h Power frequency test 35kV 4h no flash over,no strick no strick,no flash over



3. Specification Packaging

Size Type Cable Range
10kV NLY -3/1



INDOOR TERMINATION FOR

10kV 3 CORES CABLE

25-50mm2
10kV NLY -3/2   70-120mm2
10kV NLY -3/3   150-240mm2
10kV NLY -3/4   300-400mm2
10kV NLY -3/5   500-630mm2
10kV WLY -3/1



OUTDOOR TERMINATION FOR

10kV 3 CORES CABLE

25-50mm2
10kV WLY -3/2   70-120mm2
10kV WLY -3/3   150-240mm2
10kV WLY -3/4   300-400mm2
10kV WLY -3/5   500-630mm2
10kV JLY -3/1



STRAIGHT THROUGH JOINT
FOR 10kV 3 CORES CABLE

25-50mm2
10kV JLY -3/2   70-120mm2
10kV JLY -3/3   150-240mm2
10kV JLY -3/4   300-400mm2
10kV JLY -3/5   500-630mm2
10kV NLY -1/1



INDOOR TERMINATION FOR

10kV SINGLE CORE CABLE

25-50mm2
10kV NLY -1/2   70-120mm2
10kV NLY -1/3   150-240mm2
10kV NLY -1/4   300-400mm2
10kV NLY -1/5   500-630mm2
10kV WLY -1/1



OUTDOOR TERMINATION FOR

10kV SINGLE CORE CABLE

25-50mm2
10kV WLY -1/2   70-120mm2
10kV WLY -1/3   150-240mm2
10kV WLY -1/4   300-400mm2
10kV WLY -1/5   500-630mm2
10kV JLY -1/1



STRAIGHT THROUGH JOINT
FOR 10kV SINGLE CORE CABLE

25-50mm2
10kV JLY -1/2   70-120mm2
10kV JLY -1/3   150-240mm2
10kV JLY -1/4   300-400mm2
10kV JLY -1/5   500-630mm2



4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.


5. Application Case
Colourful Cold Shrinkable Termination Kits TICW Certification Straight Shape 1
