One Piece Waterproof Solder Seal Wire Connectors XHDRS - 1 White Series
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | PE | Character: | Waterproof |
|---|---|---|---|
| Type: | Insulation Sleeving | Application: | Low Voltage |
| Keyword: | Terminal Kit | Color: | Red,Yellow,Bule,White |
| High Light: | heat shrink butt connectors,automotive electrical wire connectors |
||
Waterproof solder seal heat shrink wire butt connector & solder shrink sleeves kits XHDRS , Material PE , XHDRS-1(White)
1. Product Parameter
XHDRS series of solder seal heat shrink butt connector is widely used to connect two or more wires .Transparent heat shrink tube provides encapsulation , inspectability, strain relief and insulation . Pre-fluxed solder provides controlled soldering process . One-piece design provides easy installation and lower installing cost . Color coded hot-melt rings on two ends of heat shrinkable tube provide precise selection of wire size . Also it is approval by Rohs .
2. Technical Parameter
Characteristics:
1. Shrink ratio: 2:1
2. Waterproof for wiring splices
3. Transparent sleeve provides visual inspection
4. High elasticity assures steady performance
5. Easy control of soldering process
6. Operating temperature: -55℃~125℃
7. Minimum shrink temperature: 140℃
3. Specification Packaging
| Size | Before Shrink(mm) | After Shrink(mm) | Solder Circle (mm) |
Length (mm) |
Cable size AWG (mm2) |
||||
| Inner Diameter |
Wall Thickness |
Inner Diameter |
Wall Thickness |
Inner Diameter |
Wall Thickness |
Height | |||
| XHDRS-1(White) | 2.0±0.1 | 0.30±0.05 | 1.1±0.1 | 0.50±0.05 | 1.8±0.1 | 0.3±0.05 | 2.0±0.1 | 26±0.5 |
26-24 (0.25-0.5) |
| XHDRS-2(Red) | 3.2±0.2 | 0.38±0.05 | 1.5±0.1 | 0.55±0.05 | 2.9±0.1 | 0.45±0.05 | 2.5±0.1 | 40±0.5 |
22-18 (0.5-1.5) |
|
XHDRS-3 (Blue) |
5.0±0.2 | 0.40±0.05 | 2.6±0.1 | 0.78±0.05 | 4.6±0.1 | 0.48±0.05 | 2.5±0.1 | 40±0.5 |
16-14 (1.5-2.5) |
| XHDRS-4(Yellow) | 6.5±0.2 | 0.40±0.05 | 3.0±0.1 | 0.80±0.05 | 6.2±0.1 | 0.5±0.05 | 3.5±0.1 | 40±0.5 |
12-10 (4.0-6.0) |
| XHDRS-5(Green) | 12±0.5 | 0.40±0.05 | 5.5±0.3 | 0.80±0.05 | 11±0.5 | 1.3±0.2 | 3.0±0.1 | 40±0.5 |
10-6 (6.0-10.0) |
4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

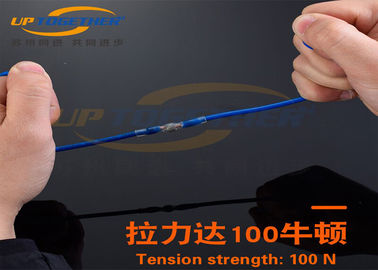

5. Application Case
