PE Heat Shrink Cable Connection Units 25Kv / MM Dielectric Strength

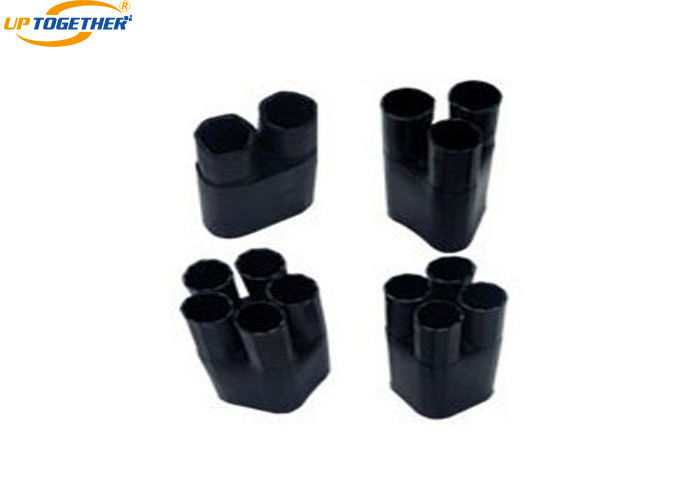

Large Image : PE Heat Shrink Cable Connection Units 25Kv / MM Dielectric Strength Get Best Price

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	UPTOGETHER
Model Number:	ZT

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Price:	$0.30 - $3.00 / Pieces
Packaging Details:	Carton
Delivery Time:	1-15days
Payment Terms:	L/C, T/T
Supply Ability:	2000 Piece/Pieces per Day

Contact Now

Detailed Product Description

Material:	Insulation , Semi-conductive , Condutive	Number Of Conductors:	2cores
Color:	Black	Voltage:	1kV,10kV,36kV
Jacket:	PE	Insulation Material:	PE
Glue:	Manual
High Light:	heat shrink cable end caps , heat shrink boot connector

Heat shrink cable breakout factory supplier ZT , 2-0#-2-4# , PE , Black

1. Product Information

Heat shrink cable breakout factory supplier ZT , 2-0#-2-4# , PE , Black are made from polyolefin material and coated on the inside with a hot melt adhesive,suitable for sealing of cable crutches of low and medium voltage cables rated for 1-36kv.Other color can be customized.

PE Heat Shrink Cable Connection Units 25Kv / MM Dielectric Strength 0

2. Technical Parameter

Property	Test Method	Result
Tensile strength	ASTM D638	≥12MPa
Elongation	ASTM D638	≥450%
Dielectric strength	ASTM D257	≥25kv/mm
Stress cracking resistance	ASTMD1693	No cracking
Volume resistivity	ASTM D149	≥1×10¹⁴Ω·cm
Water absorption	ASTM D570	<0.5%

3. Specification Packaging

Size	Before Shrinking(mm)					After Shrinking(mm)
	ID		Length			ID		Length
	Finger	Boot	Finger	Boot	Total	Finger	Boot	Finger	Boot	Total
2-0#	12	35	30	50	80	3.5	16	40	60	100
2-1#	16	44	35	70	105	5	21	45`	80	125
2-2#	25	60	50	80	130	7.5	28	60	100	160
2-3#	32	72	55	85	140	11	38	65	105	170
2-4#	39	95	55	95	150	12	42	70	110	180

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

5. Application Case
