1kV Colored Thin Wall Heat Shrink Tubing Distinguish Use Length Of Customers

Large Image : 1kV Colored Thin Wall Heat Shrink Tubing Distinguish Use Length Of Customers Get Best Price

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	UPTOGETHER
Certification:	SGS
Model Number:	DRS

Payment & Shipping Terms:

Minimum Order Quantity:	400 Meters
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	1-15days
Payment Terms:	L/C, T/T
Supply Ability:	50000 Meter/Meters per Day

Contact Now

Detailed Product Description

Name:	Thin Wall Heat Shrinkable Tubing	Material:	PE
Rated Voltage:	600v	Feature:	Soft
Wall:	Thin Wall, Single Wall	Tensile Strength:	12 N/mm²
High Light:	heat shrink plastic tubing , heat shrink wrap tubing

1kV colored Thin wall heat shrink tubing , for distinguish use ,Can Be cut according to the length of customers

1. Product Introduction

1kV colored Thin wall heat shrink tubing , for distinguish use ,Can Be cut according to the length of customers
For this type thin wall heat shrink tubing, the material is flame resistant and reach VW-1 standard.
It offers excellent electrical, chemical, and physical properties.
It can be used for insulation, harnessing, strain relief, and identification purposes in a variety of industrial and can be cut according to the length of customers .
2:1 Shrink Ratio (shrinks to ½ its original diameter)

Shrink Ratio: 2 to 1
Continuous operating temperature:-55 ℃ to 125 ℃
Fully shrink temperature:12 5 ℃

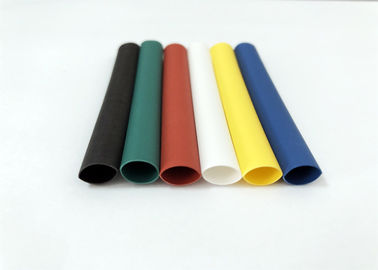

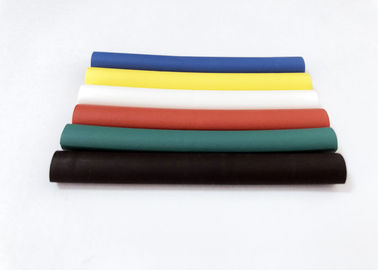

Standard color: Black , Red , Green , Yellow , Blue , White

2. Technical Parameter

Property	Test Method	Result
Tensile Strength	ASTM D638	12 N/mm²
Elongation	ASTM D638	300%
Heat Shock@250℃/30’	ASTM D2671	No Cracking .No Flow
Cold Blend@-30℃	ASTM D2671	No Cracking
Dielectric Strength	ASTM D149	15kv/mm
Voltage Withstand	@2.5kv for 60 sec	No breakdown
Volume Resistivity	ASTM D257	1x10¹⁴Ω.cm
Longitudinal Change	ASTM D2671	Inside +/- 5%

3. Specification Packing

2:1 Ratio

Size	Before Applied (mm)		After Applied (mm)		Package
(mm)	Internal Diameter	Wall Thickness	Internal Diameter	Wall Thickness	(M/Spool)
Ø3.0/1.5	3.5±0.2	0.18±0.05	≤1.5	0.35±0.05	200
Ø3.5/1.75	4.0±0.2	0.18±0.05	≤1.75	0.40±0.05	200
Ø4.0/2.0	4.5±0.2	0.20±0.05	≤2.0	0.40±0.05	100
Ø5.0/2.5	5.5±0.3	0.20±0.08	≤2.5	0.40±0.08	100

Ø6.0/3.0	6.5±0.3	0.20±0.08	≤3.0	0.40±0.08	100
Ø7.0/3.5	7.5±0.3	0.20±0.08	≤3.5	0.42±0.08	100
Ø8.0/4.0	8.5±0.3	0.20±0.08	≤4.0	0.42±0.08	100
Ø9.0/4.5	9.6±0.3	0.22±0.08	≤4.5	0.45±0.08	100
Ø10.0/5.0	10.6±0.4	0.22±0.08	≤5.0	0.45±0.08	100
Ø11.0/5.5	11.6±0.4	0.22±0.10	≤5.5	0.45±0.10	100
Ø12.0/6.0	12.6±0.4	0.22±0.10	≤6.0	0.45±0.10	100
Ø13.0/6.5	13.6±0.4	0.23±0.10	≤6.5	0.46±0.10	100
Ø14.0/7.0	14.6±0.4	0.23±0.10	≤7.0	0.46±0.10	100
Ø15.0/7.5	15.6±0.5	0.23±0.10	≤7.5	0.46±0.10	100
Ø16.0/8.0	16.6±0.5	0.25±0.10	≤8.0	0.50±0.10	100
Ø18.0/9.0	18.6±0.5	0.25±0.10	≤9.0	0.55±0.10	100
Ø20.0/10.0	20.6±0.6	0.25±0.10	≤10.0	0.55±0.10	100
Ø22.0/11.0	22.6±0.6	0.28±0.10	≤11.0	0.60±0.10	100
Ø25.0/12.0	25.6±0.6	0.30±0.10	≤12.0	0.65±0.10	25
Ø28.0/14.0	28.8±0.8	0.30±0.10	≤14.0	0.65±0.10	25
Ø30.0/15.0	30.8±0.8	0.33±0.10	≤15.0	0.70±0.10	25
Ø35.0/17.5	36.0±1.0	0.35±0.10	≤17.5	0.75±0.10	25
Ø40.0/20.0	41.0±1.0	0.35±0.10	≤20.0	0.75±0.10	25
Ø50.0/25.0	51.0±1.0	0.40±0.10	≤25.0	0.80±0.10	25
Ø60.0/30.0	61.0±1.0	0.40±0.10	≤30.0	0.80±0.10	25
Ø70.0/35.0	71.0±1.0	0.40±0.10	≤35.0	0.80±0.10	25
Ø80.0/40.0	81.0±2.0	0.45±0.10	≤40.0	0.90±0.10	25
Ø90.0/45.0	91.0±2.0	0.45±0.10	≤45.0	0.90±0.10	25
Ø100.0/50.0	102.0±2.0	0.50±0.10	≤50.0	1.0±0.20	25
Ø120.0/60.0	122.0±2.0	0.50±0.10	≤60.0	1.0±0.20	25
Ø150.0/75.0	152.0±2.0	0.50±0.10	≤75.0	1.0±0.20	25

4. Ordering Information

1kV colored Thin wall heat shrink tubing , for distinguish use ,Can Be cut according to the length of customers

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.
