6.4mm 15mm Electrical Insulation Double Wall Heat Shrink Tubing PE Material

Large Image : 6.4mm 15mm Electrical Insulation Double Wall Heat Shrink Tubing PE Material Get Best Price

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	UPTOGETHER
Certification:	SGS
Model Number:	DWDRS

Payment & Shipping Terms:

Minimum Order Quantity:	200 Meter/Meters
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	1-15days
Payment Terms:	L/C, T/T
Supply Ability:	20000 Meter/Meters per Day

Contact Now

Detailed Product Description

Product Name:	Dual Wall Heat Shrink Tubing	Before Applied:	6.4mm 15mm
Shrink Ratio:	4:1 , 3:1	Use:	Electric Wire Connection
Material:	PE	Rated Voltage:	1kV

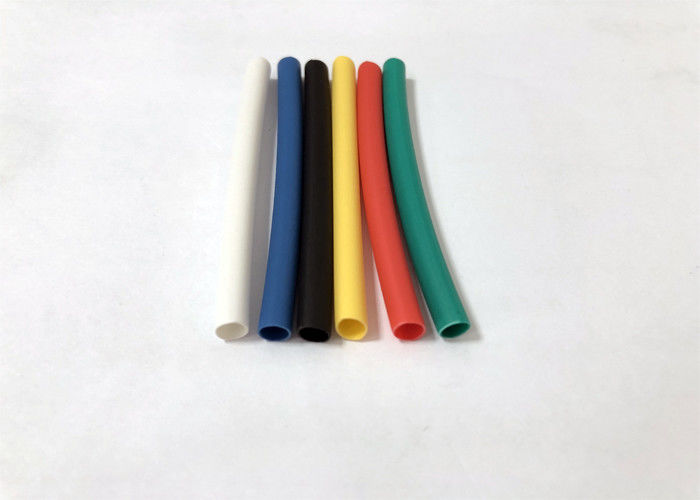

Color:	Black,red,green,blue,yellow,white	Feature:	Waterproof
High Light:	double wall heat shrink tubing , automotive heat shrink tubing

6.4mm 15mm Electrical Insulation Double Wall Heat Shrink Tubing PE Material

1. Product Introduction

Colourful Dual Wall Heat Shrink Tubing for waterproof , heat shrink tubing for electrical wires

Dual wall tubing products consist of a crosslinked outer jacket and an inner layer of adhesive or encapsulant . Dual Wall tubing creates a watertight seal to protect wire, cable and connector components .

6.4mm, 15mm quality control reaches the optimal state

Heat shrink tube are mainly used for industrial, ship, wire links, anti-rust and anti-corrosion protection of solder joints, and audio and electrical DIY. Wire ends, harnesses, electronics protection and insulation treatment, fitness equipment parts and steel structure surface protection and so on.

2. Technical Parameter

PE Base Property

Property	Test Method	Result
Tensile Strength	ASTM D638	10.3Mpa
Elongation	ASTM D638	≥300%
Dielectric Strength	ASTM D149	≥ 15kV/mm
Volume Resistivity	ASTM D257	≥ 1014Ω.cm
Longitudinal Change	ASTM D2671	-10%～+10%
Flame Retardant	UL224,VW-1	Pass
Heat Shock	ASTM D2671	Pass
Cold Blend	ASTM D2671	Pass
Water Absorption Ratio	ASTM D570	<0.5%

3. Specification Packaging

3:1 Ratio

Size

Before Applied

After Applied(mm)

Package

Inch	mm	Inner Diameter (mm)	Inner Diameter (mm)	Wall Thickness	Adhesive Thickness	M/Spool
Ø1/8	Ø3.2	3.2	1.0	0.90±0.15	0.35±0.10	200
Ø3/16	Ø4.8	4.8	1.6	1.00±0.15	0.40±0.10	100
Ø1/4	Ø6.4	6.4	2.20	1.25±0.15	0.45±0.12	100
Ø5/16	Ø7.9	7.9	2.70	1.30±0.15	0.50±0.12	100
Ø3/8	Ø9.5	9.5	3.20	1.40±0.15	0.50±0.12	50
Ø1/2	Ø12.7	12.7	4.20	1.70±0.15	0.50±0.12	36.6
Ø5/8	Ø15.0	15	5.20	1.80±0.15	0.55±0.15	30.5
Ø3/4	Ø19.1	19.1	6.30	1.95±0.15	0.55±0.15	30.5
Ø1	Ø25.4	25.4	8.50	2.05±0.20	0.55±0.15	30.5
Ø1-1/4	Ø30.0	30	10.20	2.20±0.20	0.60±0.15	24.4
Ø1-1/2	Ø39.0	39	13.50	2.50±0.20	0.60±0.15	18.3
Ø2	Ø50.0	50	17.00	2.80±0.25	0.70±0.15	12.2
Ø5/2	Ø64	64	21.00	3.00±0.25	0.70±0.15	6.1
Ø3	Ø75	75	25.00	3.00±0.30	1.00±0.20	1.22
Ø7/2	Ø90	90	30.00	3.00±0.30	1.00±0.20	1.22
Ø4	Ø100	100	34.00	3.00±0.30	1.00±0.20	1.22
Ø5	Ø125	125	42.00	3.00±0.30	1.00±0.20	1.22

4:1 Ratio

Size

Before Applied

After Applied(mm)

Package

Inch	mm	Inner Diameter (mm)	Inner Diameter (mm)	Wall Thickness	Adhesive Thickness	M/Spool
Ø5/32	Ø4.0	4	1	1.1±0.15	0.4±0.15	200
Ø1/4	Ø6.0	6	1.5	1.5±0.15	0.5±0.15	100
Ø5/16	Ø8.0	8	2	1.7±0.15	0.5±0.15	50
Ø1/2	Ø12.0	12	3	2.0±0.15	0.6±0.15	1.22m/pc
Ø5/8	Ø16.0	16	4	2.3±0.25	0.6±0.15	1.22m/pc
Ø25/32	Ø20.0	20	5	2.6±0.25	0.6±0.15	1.22m/pc
Ø1	Ø24.0	24	6	3.0±0.30	0.7±0.15	1.22m/pc
Ø3/2	Ø32.0	32	8	3.0±0.30	0.7±0.15	1.22m/pc
Ø2	Ø52.0	52	13	3.3±0.30	0.7±0.15	1.22m/pc

Hot Melting Adhesive Property

Property	Test Method	Result
Water Absorption Ratio	ASTM D570	<0.2%
Softening Point	ASTM E8	95℃
Peeling Strength (PE)	ASTM D1000	120N/25m
Peeling Strength (AL)	ASTM D1000	80N/25m

4. Ordering Information

Electric Wire Connection Dual Wall Heat Shrink Tubing , electrical wire heat shrink tubing

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.
