Cable Connecting Solder Seal Wire Connectors Spade Terminal Type Various Color
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Solder Seal Wire Connectors | Character: | Waterproof |
|---|---|---|---|
| Type: | Spade Terminal | Application: | Low Voltage |
| Usage: | Connecting Cable | Standard Color: | Red,Yellow,Bule,White |
| High Light: | heat shrink butt connectors,heat shrink terminal connector kit |
||

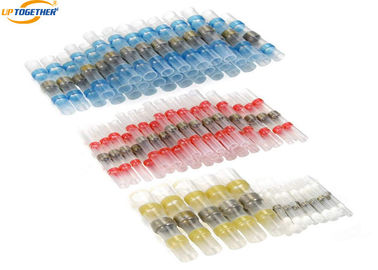

50 Pcs Electrical Waterproof Heat Shrink Solder Sealed Seal Wire Connectors
1. Product Parameter
Electrical Waterproof Heat Shrink Solder Sealed Seal Wire Connectors , One piece design , it consists of transparent heat shrinkable sleeve and fluxed solder . Provides insulation and lower the installed cost . Color hot - melt glue on two ends of heat shrinkable tube , it is very convenience to use the exact wire dimension .
2. Technical Parameter
Characteristics:
1. Shrink ratio: 2:1
2. Waterproof for wiring splices
3. Transparent sleeve provides visual inspection
4. High elasticity assures steady performance
5. Easy control of soldering process
6. Operating temperature: -55℃~125℃
7. Minimum shrink temperature: 140℃
3. Specification Packaging
| Size | Before Shrink(mm) | After Shrink(mm) | Solder Circle (mm) |
Length (mm) |
Cable size AWG (mm2) |
||||
| Inner Diameter |
Wall Thickness |
Inner Diameter |
Wall Thickness |
Inner Diameter |
Wall Thickness |
Height | |||
| XHDRS-1(White) | 2.0±0.1 | 0.30±0.05 | 1.1±0.1 | 0.50±0.05 | 1.8±0.1 | 0.3±0.05 | 2.0±0.1 | 26±0.5 |
26-24 (0.25-0.5) |
| XHDRS-2(Red) | 3.2±0.2 | 0.38±0.05 | 1.5±0.1 | 0.55±0.05 | 2.9±0.1 | 0.45±0.05 | 2.5±0.1 | 40±0.5 |
22-18 (0.5-1.5) |
|
XHDRS-3 (Blue) |
5.0±0.2 | 0.40±0.05 | 2.6±0.1 | 0.78±0.05 | 4.6±0.1 | 0.48±0.05 | 2.5±0.1 | 40±0.5 |
16-14 (1.5-2.5) |
| XHDRS-4(Yellow) | 6.5±0.2 | 0.40±0.05 | 3.0±0.1 | 0.80±0.05 | 6.2±0.1 | 0.5±0.05 | 3.5±0.1 | 40±0.5 |
12-10 (4.0-6.0) |
| XHDRS-5(Green) | 12±0.5 | 0.40±0.05 | 5.5±0.3 | 0.80±0.05 | 11±0.5 | 1.3±0.2 | 3.0±0.1 | 40±0.5 |
10-6 (6.0-10.0) |

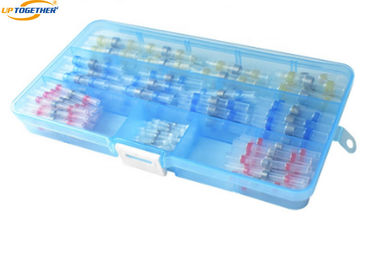

Included :
| 50PCS TERMINAL KIT |
| Red XHDRS- 23(Pcs) |
| Blue XHDRS- 12(Pcs) |
| Yellow XHDRS-5(Pcs) |
| White XHDRS-10(Pcs) |
4. Ordering Information

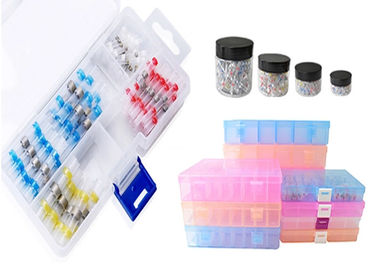

Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.
5. Application Case
