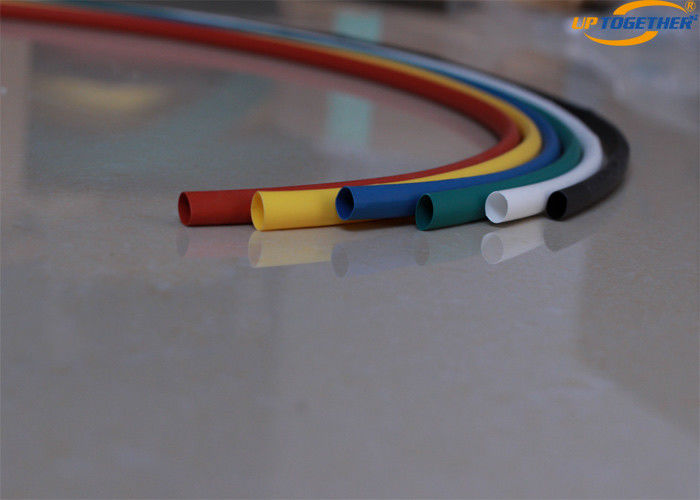

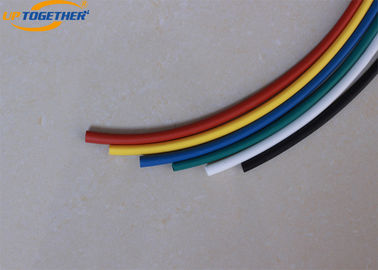

Durable Thin Wall Flexible Tubing , Waterproof Heat Shrink Tubing TSDRS

Durable Thin Wall Flexible Tubing , Waterproof Heat Shrink Tubing TSDRS
Durable Thin Wall Flexible Tubing , Waterproof Heat Shrink Tubing TSDRS Durable Thin Wall Flexible Tubing , Waterproof Heat Shrink Tubing TSDRS

Large Image :  Durable Thin Wall Flexible Tubing , Waterproof Heat Shrink Tubing TSDRS Get Best Price

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: UPTOGETHER
Certification: SGS
Model Number: VWDRS

Payment & Shipping Terms:

Minimum Order Quantity: 400 Meters
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000 Meter/Meters per Day
Detailed Product Description
Name: Heat Shrink Tube Application: Waterproof Connection
Usage: Wiring Insulation Sample: Available
Size: Customized Size Standard Color: Blue,Yellow,Black, Greem, White
High Light:

heat shrink plastic tubing

,

heat shrink wrap tubing

Durable Thin Wall Flexible Tubing , Waterproof Heat Shrink Tubing TSDRS

1. Product Introduction
TSDRS heat shrink tube is 3:1 shrink ratio tube with thin wall that are made of polymer material
This heat shrink tubing is widely used to the cable and wire insulation and protection that diamension is
change more than 2:1 shrink ratio and less than 3:1 ratio.
The material is Rohs approval and without halogen material.
This heat shrink tubing tube is not flame resistance,but it is low smoke generation if burning
Shrink ratio is 3:1,
Continuous operating temperature:-55 ℃ to 125 ℃
Fully shrink temperature:125 ℃

2. Technical Parameter


PropertyTest MethodResult
Tensile StrengthASTM D63812 N/mm2
ElongationASTM D638300%
Heat Shock@250℃/30’ASTM D2671No Cracking .No Flow
Cold Blend@-30℃ASTM D2671No Cracking
Dielectric StrengthASTM D14915kv/mm
Voltage Withstand@2.5kv for 60 secNo breakdown
Volume ResistivityASTM D2571x1014Ω.cm
Longitudinal ChangeASTM D2671Inside +/- 5%


3. Specification Packing
3:1 Ratio


SizeBefore Applied (mm)After Applied (mm)Package
(mm)Internal DiameterInternal Diameter

Wall

Thickness

(M/Spool)
1.5/0.51.60±0.10≤0.50.45±0.10200
3.0/1.03.20±0.10≤1.00.55±0.10200
4.5/1.54.70±0.10≤1.50.60±0.10100
6.0/2.06.20±0.10≤2.00.65±0.10100
9.0/3.09.30±0.20≤3.00.75±0.1550
12.0/4.012.30±0.20≤4.00.75±0.1550
15.0/5.015.30±0.20≤5.00.80±0.1550
18.0/6.018.30±0.20≤6.00.85±0.1550
24.0/8.024.40±0.30≤8.01.00±0.2025
30.0/10.030.40±0.30≤10.01.15±0.2025
39.0/13.039.6±0.50≤13.01.50±0.2025
50.0/16.050.6±0.50≤16.02.50±0.2025
60.0/20.061.50±1.00≤20.02.60±0.2025
70.0/23.071.50±1.00≤23.02.60±0.2025
80.0/26.081.50±1.00≤26.02.60±0.2025
90.0/30.091.50±1.00≤30.02.60±0.2025
100.0/33.0101.50±1.00≤33.02.60±0.2025


4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

5. Application Case
Durable Thin Wall Flexible Tubing , Waterproof Heat Shrink Tubing TSDRS 0
