ZRDRS Heat Shrink Plastic Tubing , Flame Resistance Colored Shrink Tubing

China ZRDRS Heat Shrink Plastic Tubing , Flame Resistance Colored Shrink Tubing supplier
ZRDRS Heat Shrink Plastic Tubing , Flame Resistance Colored Shrink Tubing supplier ZRDRS Heat Shrink Plastic Tubing , Flame Resistance Colored Shrink Tubing supplier

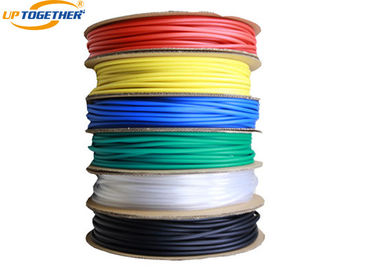

Large Image :  ZRDRS Heat Shrink Plastic Tubing , Flame Resistance Colored Shrink Tubing

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: UPTOGETHER
Certification: SGS
Model Number: ZRDRS

Payment & Shipping Terms:

Minimum Order Quantity: 400 Meters
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000 Meter/Meters per Day
Contact Now
Detailed Product Description
Other Name: Thin Wall Heat Shrink Tubing Wall Thickness: Thin Wall
Usage: Insulation Protection Feature: Waterproof
Standard Color: Black,White,Yelllow,Red,Green,Clear,Grey,Brown Sample: Free For Existing Sample

Flame Resistance Heat Shrink Tube , Thin Wall Tube , ZRDRS , Green , Blue , White , Clear



1. Product Introduction

ZRDRS flame resistance tube is a heat shrink tubing with thin wall that are made of polymer material
with flame resistance component inclued red phosphorous.
For this tube, the material is flame resistant,when it fire,it will extinguish in one minutes.
This heat shrink tube is widely used to the cable and wire insulation and protection.
The material is Rohs approval.
Shrink ratio is 2:1,
Continuous operating temperature:-55 ℃ to 125 ℃
Fully shrink temperature:12 5 ℃



2. Technical Parameter

Property Test Method Result
Tensile Strength ASTM D638 12 N/mm2
Elongation ASTM D638 300%
Heat Shock@250℃/30’ ASTM D2671 No Cracking .No Flow
Cold Blend@-30℃ ASTM D2671 No Cracking
Dielectric Strength ASTM D149 15kv/mm
Voltage Withstand @2.5kv for 60 sec No breakdown
Volume Resistivity ASTM D257 1x1014Ω.cm
Longitudinal Change ASTM D2671 Inside +/- 5%



3. Specification Packing

2:1 Ratio

Size Before Applied (mm) After Applied (mm) Package
(mm) Internal Diameter

Wall

Thickness

Internal Diameter

Wall

Thickness

(M/Spool)
Ø3.0/1.5 3.5±0.2 0.18±0.05 ≤1.5 0.35±0.05 200
Ø3.5/1.75 4.0±0.2 0.18±0.05 ≤1.75 0.40±0.05 200
Ø4.0/2.0 4.5±0.2 0.20±0.05 ≤2.0 0.40±0.05 100
Ø5.0/2.5 5.5±0.3 0.20±0.08 ≤2.5 0.40±0.08 100
Ø6.0/3.0 6.5±0.3 0.20±0.08 ≤3.0 0.40±0.08 100
Ø7.0/3.5 7.5±0.3 0.20±0.08 ≤3.5 0.42±0.08 100
Ø8.0/4.0 8.5±0.3 0.20±0.08 ≤4.0 0.42±0.08 100
Ø9.0/4.5 9.6±0.3 0.22±0.08 ≤4.5 0.45±0.08 100
Ø10.0/5.0 10.6±0.4 0.22±0.08 ≤5.0 0.45±0.08 100
Ø11.0/5.5 11.6±0.4 0.22±0.10 ≤5.5 0.45±0.10 100
Ø12.0/6.0 12.6±0.4 0.22±0.10 ≤6.0 0.45±0.10 100
Ø13.0/6.5 13.6±0.4 0.23±0.10 ≤6.5 0.46±0.10 100
Ø14.0/7.0 14.6±0.4 0.23±0.10 ≤7.0 0.46±0.10 100
Ø15.0/7.5 15.6±0.5 0.23±0.10 ≤7.5 0.46±0.10 100
Ø16.0/8.0 16.6±0.5 0.25±0.10 ≤8.0 0.50±0.10 100
Ø18.0/9.0 18.6±0.5 0.25±0.10 ≤9.0 0.55±0.10 100
Ø20.0/10.0 20.6±0.6 0.25±0.10 ≤10.0 0.55±0.10 100
Ø22.0/11.0 22.6±0.6 0.28±0.10 ≤11.0 0.60±0.10 100
Ø25.0/12.0 25.6±0.6 0.30±0.10 ≤12.0 0.65±0.10 25
Ø28.0/14.0 28.8±0.8 0.30±0.10 ≤14.0 0.65±0.10 25
Ø30.0/15.0 30.8±0.8 0.33±0.10 ≤15.0 0.70±0.10 25
Ø35.0/17.5 36.0±1.0 0.35±0.10 ≤17.5 0.75±0.10 25
Ø40.0/20.0 41.0±1.0 0.35±0.10 ≤20.0 0.75±0.10 25
Ø50.0/25.0 51.0±1.0 0.40±0.10 ≤25.0 0.80±0.10 25
Ø60.0/30.0 61.0±1.0 0.40±0.10 ≤30.0 0.80±0.10 25
Ø70.0/35.0 71.0±1.0 0.40±0.10 ≤35.0 0.80±0.10 25
Ø80.0/40.0 81.0±2.0 0.45±0.10 ≤40.0 0.90±0.10 25
Ø90.0/45.0 91.0±2.0 0.45±0.10 ≤45.0 0.90±0.10 25
Ø100.0/50.0 102.0±2.0 0.50±0.10 ≤50.0 1.0±0.20 25
Ø120.0/60.0 122.0±2.0 0.50±0.10 ≤60.0 1.0±0.20 25
Ø150.0/75.0 152.0±2.0 0.50±0.10 ≤75.0 1.0±0.20 25



4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

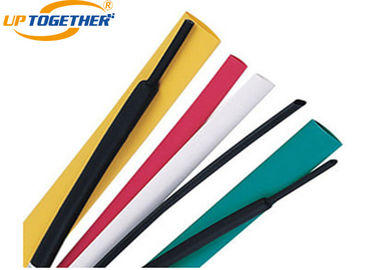

5. Application Case

ZRDRS Heat Shrink Plastic Tubing , Flame Resistance Colored Shrink Tubing
