1kV Busbar Heat Shrink Tubing Various Color φ20 - φ150MM 5% Longitudinal Change

China 1kV Busbar Heat Shrink Tubing Various Color φ20 - φ150MM 5% Longitudinal Change supplier
1kV Busbar Heat Shrink Tubing Various Color φ20 - φ150MM 5% Longitudinal Change supplier 1kV Busbar Heat Shrink Tubing Various Color φ20 - φ150MM 5% Longitudinal Change supplier 1kV Busbar Heat Shrink Tubing Various Color φ20 - φ150MM 5% Longitudinal Change supplier 1kV Busbar Heat Shrink Tubing Various Color φ20 - φ150MM 5% Longitudinal Change supplier 1kV Busbar Heat Shrink Tubing Various Color φ20 - φ150MM 5% Longitudinal Change supplier 1kV Busbar Heat Shrink Tubing Various Color φ20 - φ150MM 5% Longitudinal Change supplier

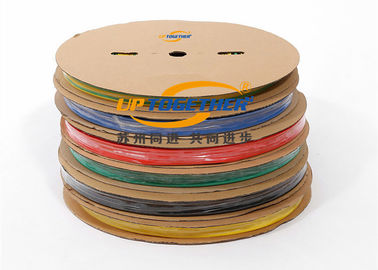

Large Image :  1kV Busbar Heat Shrink Tubing Various Color φ20 - φ150MM 5% Longitudinal Change

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: UPTOGETHER
Certification: SGS
Model Number: MPG

Payment & Shipping Terms:

Minimum Order Quantity: 25 Meter/Meters
Price: $0.05 - $15.00 / Meters
Packaging Details: Carton
Delivery Time: 1-15days
Payment Terms: L/C, T/T
Supply Ability: 10000 Meter/Meters per Day
Contact Now
Detailed Product Description
Material: PE Shrink Ratio: 2:1
Type: Halogen Free, Flame Resistance Voltage: 1kV,0.6/1kV

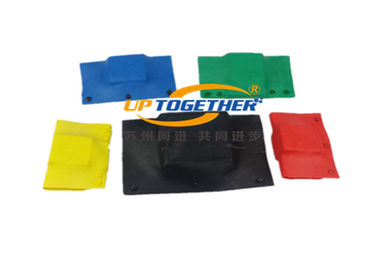

Busbar Box Type: T L I Color: Red Yellow Green Black Blue

1kV Bus Bar Heat Shrink Tube BusBar Box MPG MPH ,φ20-φ150 , red , yellow , green , black , blue

1. Product Introduction
MPG series of heat shrink bus bar tube are made from polyolefin material and suitable for busbar insulation up to 1kV. They are available in Red, Yellow, Green,Black,Blue,colours to make identification of the phases easy.Bus Bar Tube typical applications include insulation of electrical bus bar rated up to 36KV or higher voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.

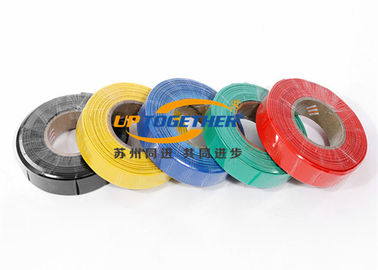

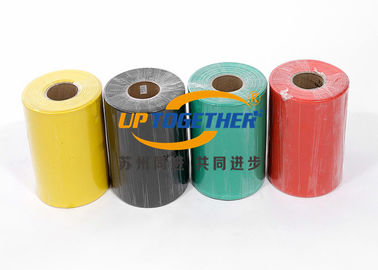

1kV Busbar Heat Shrink Tubing Various Color φ20 - φ150MM 5% Longitudinal Change

2. Technical Parameter

PropertyTest MethodResult
Tensile StrengthASTM D63812 N/mm2
ElongationASTM D638300%
Heat Shock@250℃/30’ASTM D2671No Cracking .No Flow
Cold Blend@-30℃ASTM D2671No Cracking
Dielectric StrengthASTM D14915kv/mm
Voltage Withstand@2.5kv for 60 secNo breakdown
Volume ResistivityASTM D2571x1014Ω.cm
Longitudinal ChangeASTM D2671Inside +/- 5%


3. Specification Packaging

SizeBefore Applied (mm)After Applied (mm)Package
(mm)Internal Diameter

Wall

Thickness

Internal Diameter

Wall

Thickness

(M/Spool)
Ø20.0/10.020.6±0.60.25±0.10≤10.00.55±0.10100
Ø22.0/11.022.6±0.60.28±0.10≤11.00.60±0.10100
Ø25.0/12.025.6±0.60.30±0.10≤12.00.65±0.1025
Ø28.0/14.028.8±0.80.30±0.10≤14.00.65±0.1025
Ø30.0/15.030.8±0.80.33±0.10≤15.00.70±0.1025
Ø35.0/17.536.0±1.00.35±0.10≤17.50.75±0.1025
Ø40.0/20.041.0±1.00.35±0.10≤20.00.75±0.1025
Ø50.0/25.051.0±1.00.40±0.10≤25.00.80±0.1025
Ø60.0/30.061.0±1.00.40±0.10≤30.00.80±0.1025
Ø70.0/35.071.0±1.00.40±0.10≤35.00.80±0.1025
Ø80.0/40.081.0±2.00.45±0.10≤40.00.90±0.1025
Ø90.0/45.091.0±2.00.45±0.10≤45.00.90±0.1025
Ø100.0/50.0102.0±2.00.50±0.10≤50.01.0±0.2025
Ø120.0/60.0122.0±2.00.50±0.10≤60.01.0±0.2025
Ø150.0/75.0152.0±2.00.50±0.10≤75.01.0±0.2025



4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

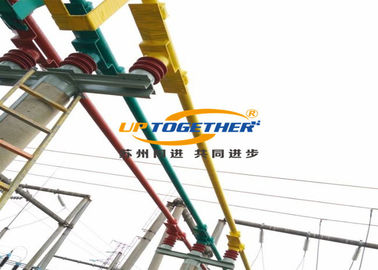

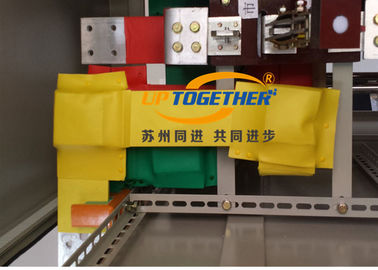

5. Application Case
1kV Busbar Heat Shrink Tubing Various Color φ20 - φ150MM 5% Longitudinal Change
