High Voltage Halogen Free Heat Shrink Tube , Wrap Around Heat Shrink Tubing

China High Voltage Halogen Free Heat Shrink Tube , Wrap Around Heat Shrink Tubing supplier
High Voltage Halogen Free Heat Shrink Tube , Wrap Around Heat Shrink Tubing supplier High Voltage Halogen Free Heat Shrink Tube , Wrap Around Heat Shrink Tubing supplier

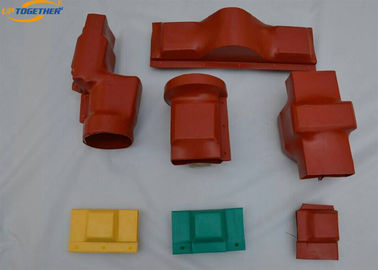

Large Image :  High Voltage Halogen Free Heat Shrink Tube , Wrap Around Heat Shrink Tubing

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: UPTOGETHER
Certification: SGS
Model Number: MPH

Payment & Shipping Terms:

Minimum Order Quantity: 25 Meter/Meters
Price: $0.05 - $15.00 / Meters
Packaging Details: Carton
Delivery Time: 1-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000 Meter/Meters per Day
Contact Now
Detailed Product Description
Type: Insulation Sleeving Voltage: 36kV
Busbar Box Type: T L I Standard Color: Red Yellow Green
Product Name: 36kV Bus Bar Heat Shrink Tube BusBar Box Application: High Voltage

36kV Bus Bar Heat Shrink Tube BusBar Box MPH , φ20-φ150mm , Red , Yellow , Green

1. Product Introduction
36kV Bus Bar Heat Shrink Tube BusBar Box MPH , φ20-φ150mm , Red , Yellow , Green
1.  Shrink ratio: 2.5:1
2. Tracking resistant, low smoke emitting, high strength, flexible, flame retardant
3. Min. shrink temperature: ≥84°C
4. Min. full recovery temperature: ≥120°C
5. Continuous operating temperature: -55°C~125°C
6. RoHS compliant
7. Standard Package :Black, White, Red ,Yellow, Green ,Blue. More colors are available upon request.
2. Technical Parameter

PropertyTest MethodResult
Tensile StrengthASTM D63812 N/mm2
ElongationASTM D638300%
Heat Shock@250℃/30’ASTM D2671No Cracking .No Flow
Cold Blend@-30℃ASTM D2671No Cracking
Dielectric StrengthASTM D14915kv/mm
Voltage Withstand@2.5kv for 60 secNo breakdown
Volume ResistivityASTM D2571x1014Ω.cm
Longitudinal ChangeASTM D2671Inside +/- 5%


3. Specification Packaging

SizeBefore Applied (mm)After Applied (mm)Package
(mm)Internal Diameter

Wall

Thickness

Internal Diameter

Wall

Thickness

(M/Spool)
Ø20.0/10.020.6±0.60.25±0.10≤10.00.55±0.10100
Ø22.0/11.022.6±0.60.28±0.10≤11.00.60±0.10100
Ø25.0/12.025.6±0.60.30±0.10≤12.00.65±0.1025
Ø28.0/14.028.8±0.80.30±0.10≤14.00.65±0.1025
Ø30.0/15.030.8±0.80.33±0.10≤15.00.70±0.1025
Ø35.0/17.536.0±1.00.35±0.10≤17.50.75±0.1025
Ø40.0/20.041.0±1.00.35±0.10≤20.00.75±0.1025
Ø50.0/25.051.0±1.00.40±0.10≤25.00.80±0.1025
Ø60.0/30.061.0±1.00.40±0.10≤30.00.80±0.1025
Ø70.0/35.071.0±1.00.40±0.10≤35.00.80±0.1025
Ø80.0/40.081.0±2.00.45±0.10≤40.00.90±0.1025
Ø90.0/45.091.0±2.00.45±0.10≤45.00.90±0.1025
Ø100.0/50.0102.0±2.00.50±0.10≤50.01.0±0.2025
Ø120.0/60.0122.0±2.00.50±0.10≤60.01.0±0.2025
Ø150.0/75.0152.0±2.00.50±0.10≤75.01.0±0.2025


4. Ordering Information
Packing
1. By diffrent cartons and plastic pallents.
2. Anonymous packing is available.
3. OEM packing is available.
4. Do as customer's requirements.
Delivery
1. Our factory is nearby Shanghai.
2. Other seaport is acceptable.
3. Do as customer's requirements.

5. Application Case
High Voltage Halogen Free Heat Shrink Tube , Wrap Around Heat Shrink Tubing
