1 - 36kV Busbar Insulation Tape 0 . 8 / 1 / 1 . 4MM Thickness PE Material

Large Image : 1 - 36kV Busbar Insulation Tape 0 . 8 / 1 / 1 . 4MM Thickness PE Material Get Best Price

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	UPTOETHER
Certification:	SGS
Model Number:	FRJD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Roll/Rolls
Price:	$2.20 - $6.00 / Rolls
Packaging Details:	Carton
Delivery Time:	1-15 Days
Payment Terms:	L/C, T/T
Supply Ability:	500 Roll/Rolls per Day

Contact Now

Detailed Product Description

Material:	PE	Shrink Ratio:	30%
Rohs:	SGS	Voltage:	1kV,10kV,35kV
Glue:	EVA	Type:	Halogen Free, Flame Resistance
High Light:	wrap around heat shrink tubing , halogen free heat shrink tube

1-36kV bus bar heat shrink tape FJRD , Thickness 0.8 , 1.0 , 1.4mm , Color Red Yellow Green Black , Material PE

1. Product Introduction

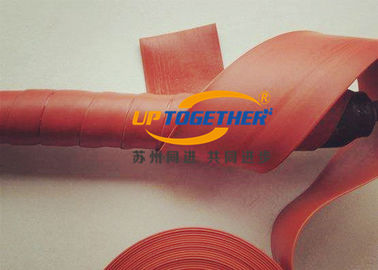

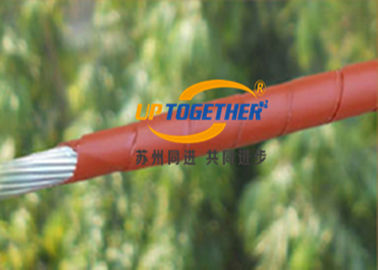

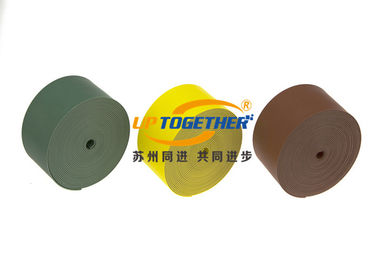

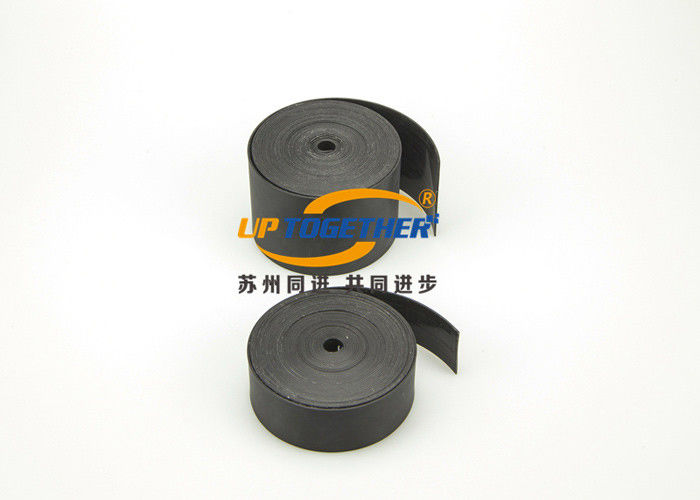

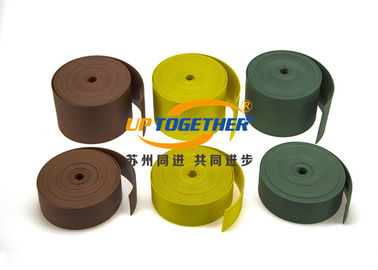

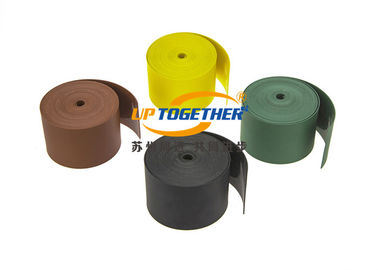

FJRD series of bus bar tapes are manufactured from a specially formulated polyolefin compound with a high dielectric strength. On heating, the tape shrinks and sticks to form a uniform layer of insulation,They are available in Red,Yellow,Green,Black,Other colours are available against specific request.

1 - 36kV Busbar Insulation Tape 0 . 8 / 1 / 1 . 4MM Thickness PE Material 0

2. Technical Parameter

Property	Test Method	Result
Tensile strength	ASTM D638	≥12MPa
Elongation	ASTM D638	≥450%
Dielectric strength	ASTM D257	≥25kv/mm
Volume resistivity	ASTM D149	≥1×10¹⁴Ω·cm
Water absorption	ASTM D570	<0.5%

3. Specification Packaging

Voltage(kv)	Thickness(mm)	Width(mm)	Package(M/spool)
1.0	0.8	25,50	5(10)
6.6-15	1.0	25,50	5(10)
30-36	1.4	50	5

4. Ordering Information

Packing
1. By diffrent cartons and plastic pallents.

2. Anonymous packing is available.

3. OEM packing is available.

4. Do as customer's requirements.

Delivery
1. Our factory is nearby Shanghai.

2. Other seaport is acceptable.

3. Do as customer's requirements.

5. Application Case
